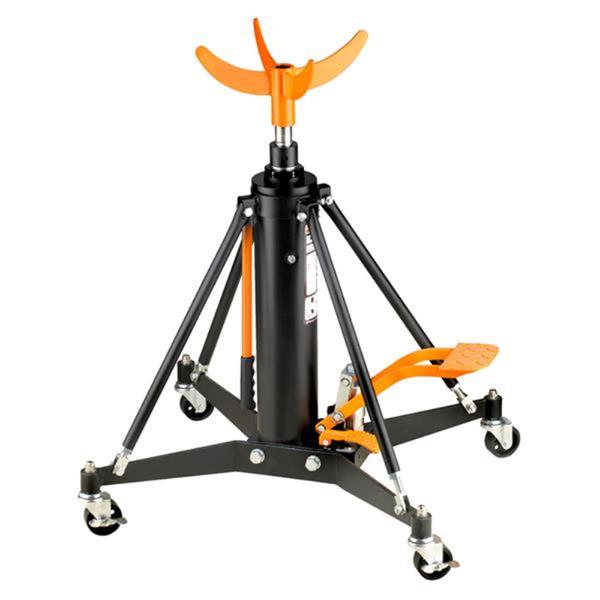

Bahco BH5DP1000QA Hydraulic Transmission Jack Double Piston 1000kg Capacity
The Bahco BH5DP1000QA is a professional-grade hydraulic transmission jack designed for removing, installing, and transporting vehicle transmissions and similar heavy components. Its double-piston system delivers rapid lifting, while its robust construction and wide base ensure maximum stability.
Features:
- High Load Capacity: Lifts and supports loads up to 1,000 kg.
- Double Piston System: Quick-lift design reaches maximum height with fewer pump strokes for faster operation.
- Durable Construction: Heavy-duty steel frame ensures long-lasting performance and reliability.
- Chrome-Plated Piston Rods: Corrosion-resistant finish for extended service life.

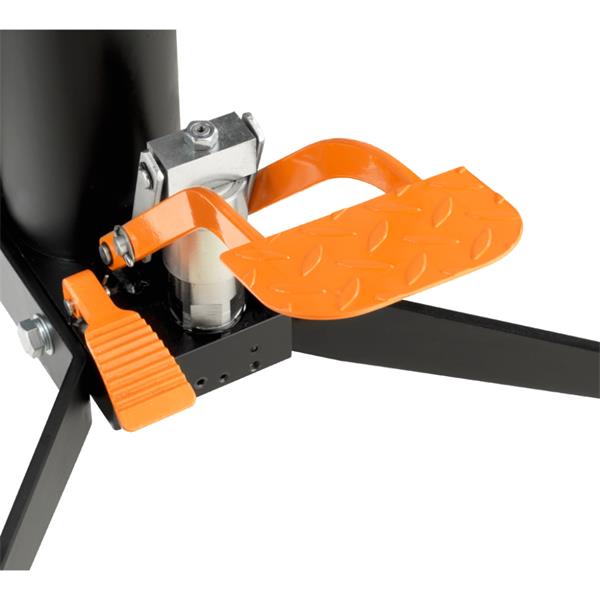

- Large Foot Pedal: Provides convenient operation from either side for easy lifting.
- Wide, Stable Base: Prevents tipping and ensures smooth maneuvering during use.

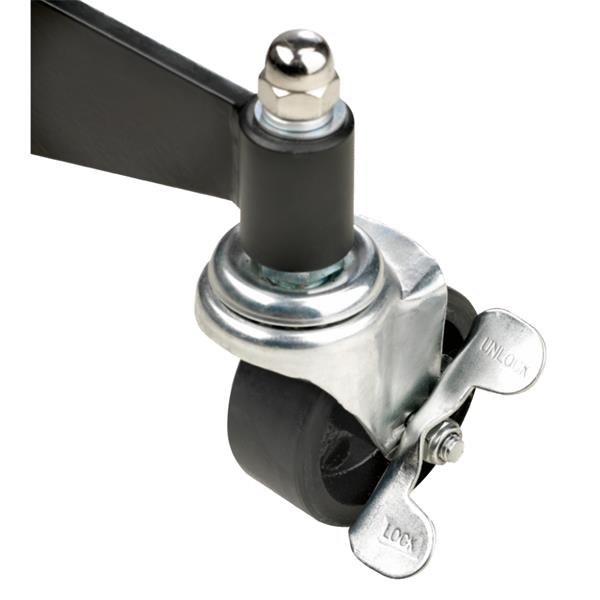

- Swivel Castors: Equipped with four 75 mm castors, two with brakes, for secure positioning and mobility.
- Safety Standards: Fully CE certified and compliant with BS EN 1494 safety regulations.
Specifications:
- Model: BH5DP1000QA
- Maximum Load Capacity: 1,000 kg
- Minimum Height: 899 mm

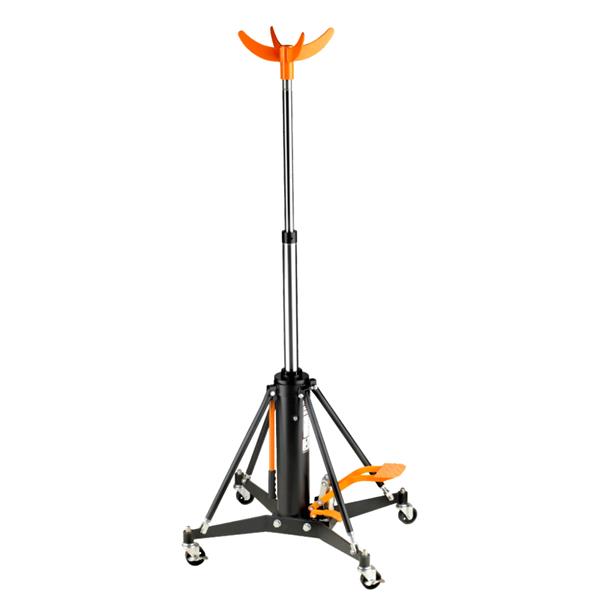

- Maximum Height: 1,899 mm
- Pump Strokes to Full Height: 36
- Base Dimensions: 759 × 759 mm
- Weight: 61 kg
- Operation Type: Hydraulic with double piston system
- Handle Type: Foot-operated lift and release controls
- Material: Heavy-duty steel with powder-coated finish
Applications:
- Designed for automotive workshops and service centers handling heavy-duty transmission work.
- Ideal for gearbox removal, installation, and alignment under elevated vehicles.
- Suitable for heavy-vehicle maintenance, including buses, trucks, and industrial equipment.

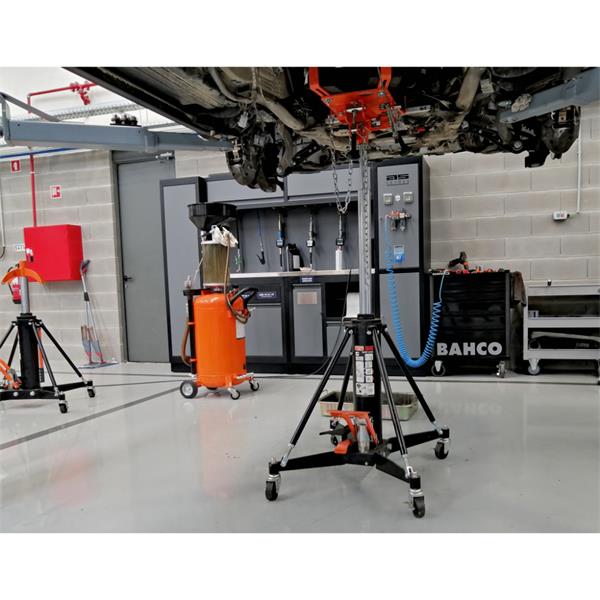

- Excellent for use in vehicle pits or lifts, providing precise positioning and secure lifting.
Includes:
- 1 × Bahco BH5DP1000QA Hydraulic Transmission Jack
- 4 × Heavy-duty swivel castors with brakes
- Built-in quick-lift double piston mechanism
- Foot-operated lift and lowering controls
- Safety overload valve
