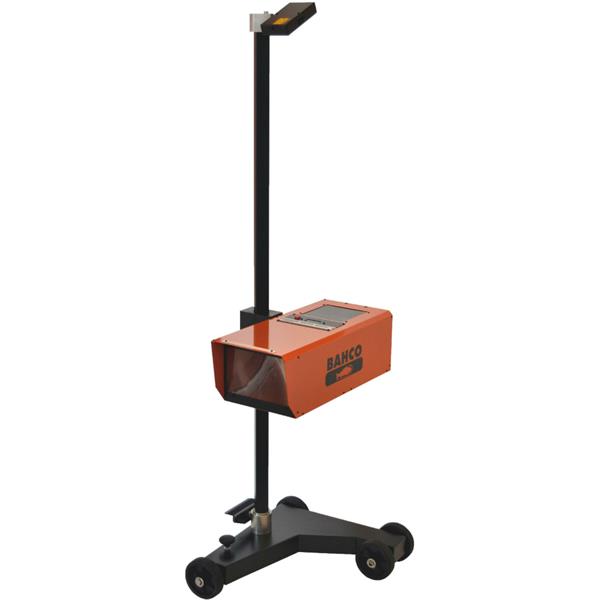

Bahco BLBT100 Laser Head Lamp Tester
The Bahco BLBT100 Laser Headlamp Tester is a professional-grade tool designed for precise checking and adjustment of vehicle headlamps. It is suitable for a very wide range of headlamps including halogen, xenon, LED, and matrix LED headlights, such as those for Audi vehicles.
Features:
- Dual laser technology for accurate positioning and measurement of headlamps.
- Suitable for adjusting headlamps according to vehicle manufacturer specifications with additional protocols and equipment.
- Lightweight and easy to handle.
- Suitable for use in garages and test lanes.
- Internal adjustable measuring screen with scale for both right-hand and left-hand drive vehicles.
- Laser alignment visor and central laser pointer for easy unit positioning.
- Digital luxometer included to measure light intensity.
- Height adjustment system with locking from 240mm to 1,400mm.
- Rotating mast allowing 360° rotation of the headlamp tester unit.
- Water scale level and floor slope adjustment knob.
- Base equipped with 3 castors for easy rolling and high stability.
- Sturdy anti-tip base with locking for the rotating mast.
- CE certified and approved by UTAC and NFR63-801 in France.
Specifications:
- Height adjustment range: 240mm to 1,400mm
- Total height (max): 1,650mm
- Weight: 19.5 kg
- Portable and stable base with castors
Applications:
- Checking high, low, and fog lights on a wide variety of vehicles.
- Suitable for garages, inspection centers, and service stations.
- Used for headlamp alignment to meet safety standards for light distribution and intensity.
Includes:
- x1 Bahco BLBT100 Laser Head Lamp Tester
