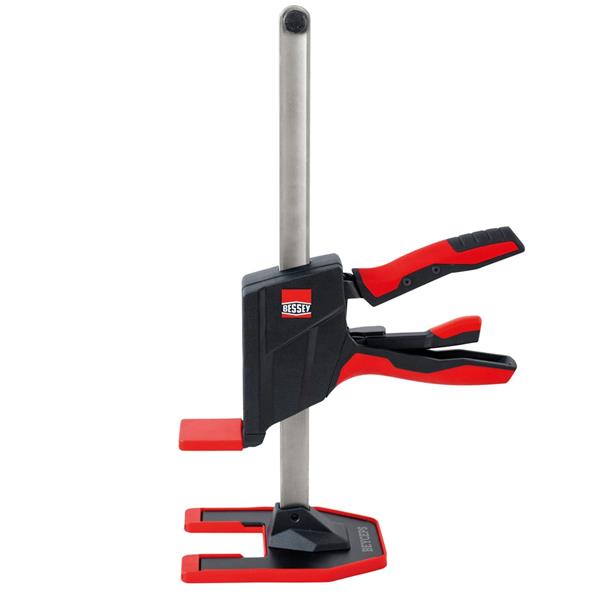

Bessey BEYCEPS Lifting and assembly tool 180kg Lifting Capacity
This precision lifting and aligning tool allows lifting, lowering, and positioning workpieces with millimeter accuracy using a single hand. Designed for safe and ergonomic operation, it combines high lifting capacity with fine control, protective features, and the versatility to convert into a clamping tool without the need for additional tools.
Features:
- Lifting force up to 1,800 N / 180 kg / 400 lbs

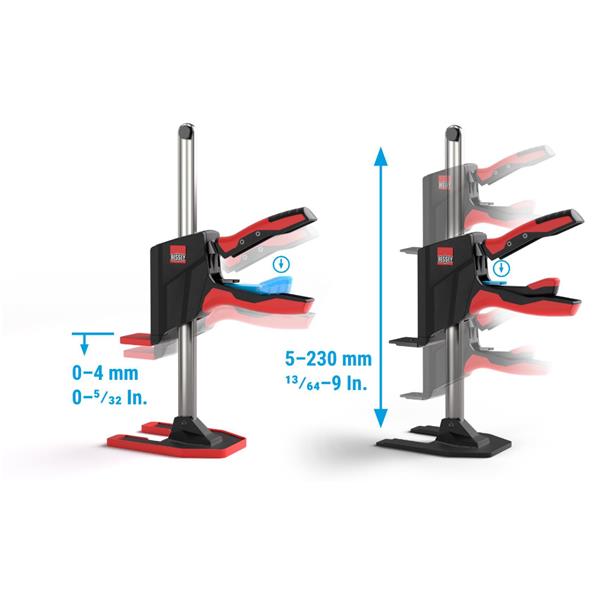

- Lift (up to 8 mm per pump lever stroke) and lower (up to 4 mm per lowering lever stroke) workpieces with millimeter precision
- Ergonomic handling with 2-component plastic pump lever on top and separate fine-lowering/release levers below
- Closed plastic housing protects mechanism from dust, dirt, chips, and prevents finger injuries
- Convertible for clamping tasks without tools
- Protective caps for stand and lifting plate to prevent surface damage
Specifications:
- Maximum Weight: 1,800 N / 180 kg / 400 lbs
- Lift per Pump Lever Stroke: Up to 8 mm
- Fine Lowering per Lever Stroke: Up to 4 mm
- Hub Capacity: 180 kg
- Usable Lifting Surface / Spread: 5–230 mm
- Useful Clamping Range: 170–390 mm
- Rail Dimensions: 22 × 8 mm
Applications:
- Precise lifting and lowering of heavy workpieces
- Aligning components for assembly or machining tasks
- Clamping and positioning sensitive parts without causing damage
- Workshop, industrial, or construction applications requiring ergonomic one-handed operation
- Tasks where controlled millimeter-precise movement is critical
Includes:
- Bessey BEYCEPS Lifting and assembly tool 180kg Lifting Capacity
