Beta 8097 D8-3-Chain Sling EN818-4 2 Legs 3m

€289.98 Inc. VAT

New

Code BET-080970043

Add to Basket

Product Information

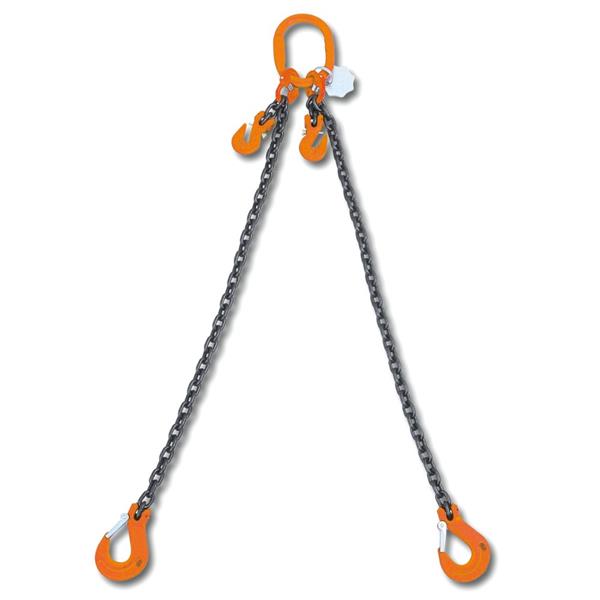

Beta 8097 D8-3-Chain Sling EN818-4 2 Legs 3m

lifting chain sling, 2 legs with clevis grab hooks, grade 8

Features

• The Beta 8097 D8-3 is a specific premium configuration of the Robur 8097 overhead lifting chain sling series. It is explicitly designed for overhead rigging, material handling, and balanced crane towing of heavy industrial components.
• This precise variant is engineered to safely hoist a Working Load Limit (WLL) of up to 2.8 Tonnes (2,800 kg) when operated at a standard rigging angle between 0° and 45°.

Specifications

• 8097: Represents the heavy-duty Grade 8 steel dual-leg sling line equipped with specialized integrated clevis grab hooks.

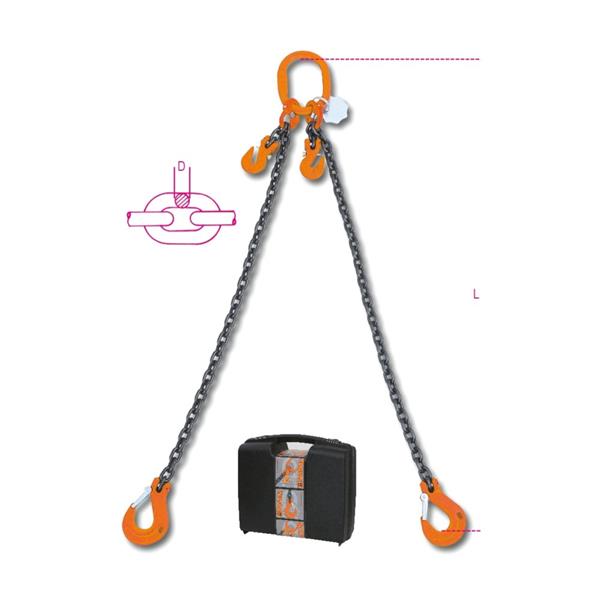

• D8: Indicates an 8 mm nominal chain link diameter, which establishes the tensile structural strength rating.
• 3: Defines the 3-metre total effective working length of each individual chain leg from the master link down to the lower hook assemblies.
• EN818-4: Denotes full, tested compliance with European safety standards governing welded chain slings used for general overhead lifting purposes.

Applications

• Asymmetrical Load Leveling: The defining feature of this sling is its clevis grab (shortening) hooks. If you are lifting an uneven payload—such as an off-balance engine assembly or industrial pump—a technician can shorten one of the 3-metre chain legs link-by-link to keep the overall load perfectly level during hoisting.
• Secure Self-Locking Hook Architecture: It features integrated self-locking safety hooks on the leg ends. Once a load is pinned into the hooks, the latch locks automatically under weight tension to completely eliminate the risk of accidental slips or load drops.
• Rigorous Certification & Safety: Each assembly comes pre-stamped from the factory with a 4:1 safety factor ratio and features a metal chain-sling identification tag. This tag displays trace numbers and load thresholds so field managers can pass safety inspections at industrial sites.

Comes With

• High-Tensile Grade 8 Construction: Manufactured out of high-strength alloy steels, this sling is built specifically for intensive, continuous, and repeated heavy-duty use at maximum capacity without stretching or warping.
• • Clevis Grab Hooks: The legs are fitted with heavy-duty grab hooks that securely clutch directly onto the chain links, making it easy to shorten a leg or create tight choke chains.
• Wide Temperature Resilience: Engineered to function flawlessly in extreme environments without any alteration to its mechanical traits, maintaining full performance across a temperature spectrum of -40°C to +200°C.
• Certified Safety Infrastructure: The kit adheres strictly to the UNI EN 818-4 standard and boasts a 4:1 safety factor. It comes equipped with a mandatory, durable chain-sling identification tag to display the Working Load Limit (WLL) for rigging safety checks.
