Beta 8147S 05-Push Trolleys for Manual Beam Clamps

€137.99 Inc. VAT

Add to Basket

Product Information

Push trolleys for manual beam clamps

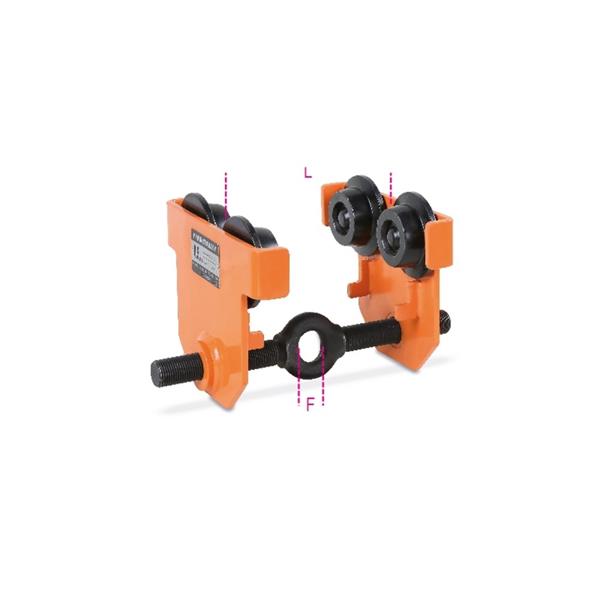

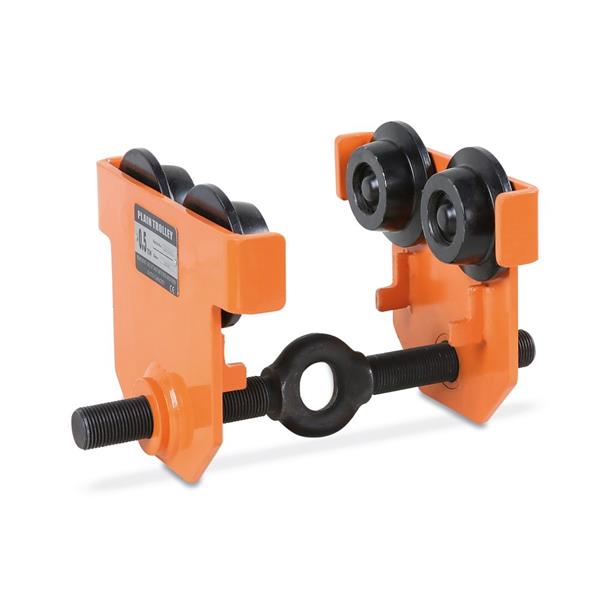

The Beta 8147S 05 is a heavy-duty, professional-grade 0.5-Ton push travel beam trolley from Beta's specialized Robur lifting equipment line.
Its primary purpose is to create a mobile, heavy-duty overhead anchor point on structural steel beams. By clamping onto the lower flange of an overhead girder, it allows technicians to attach manual hoists (such as hand chain blocks or lever hoists) and move heavy loads horizontally along the length of the beam simply by pushing or pulling the load. It is widely used in warehouses, automotive repair shops, production lines, and shipping bays where electric power is unavailable or unnecessary.

0.5-Ton Weight Threshold: This specific ""05"" model is rated for a maximum Working Load Limit (WLL) of up to 500 kg (0.5 Tonnes). This rating must cover the combined weight of both your hoist equipment and the payload being lifted.
Rigorous Safety Standards: Built in strict compliance with the European standard EN 13157 and engineered with a 4:1 safety factor rating. It comes standard with a permanent serial identification plate to guarantee complete factory traceability during rigging inspections.

Horizontal Load Logistics: Transporting heavy machinery, components, engines, or fabricated steel structures seamlessly across a workshop or production floor.
Non-Powered Workspaces: Providing full structural lifting and lateral movement capabilities in field settings or factory zones that lack electrical infrastructure.
Hoist Versatility Station: Acting as a universal mounting interface; its lower suspension eye accommodates almost all standard hook-mounted manual chain blocks and hoist brands.

Universal Beam Profile Compatibility: Engineered to fit and roll smoothly along a wide variety of standard structural steel beams, including INP, IPB, IPE, HEA, and HEB profiles.
Fast Manual Profiling: Features an adjustable central width mechanism controlled by a manually operated opening bar. This allows a technician to quickly adapt the spacing of the wheels to match the exact width of the local beam flange during installation.
Shock-Absorbing Engineering: Outfitted with structural shockproof wheel guards (suspension lugs). These guards protect the internal wheel bearings from structural impact if the trolley rolls into structural end-stops or obstacles along the beam track.
