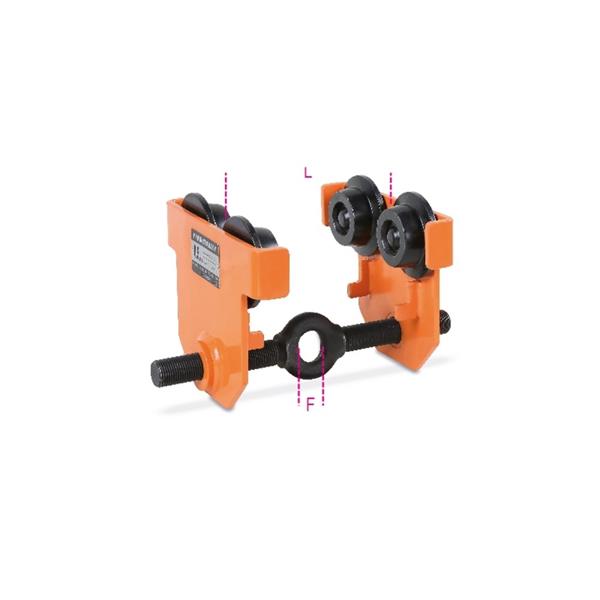

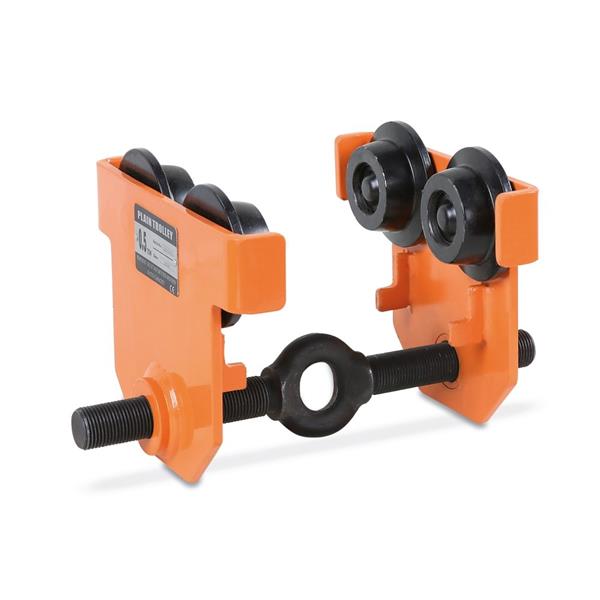

Beta 8147S 20-Push Trolleys for Manual Beam Clamps

Beta 8147S 20-Push Trolleys for Manual Beam Clamps

€225.99 Inc. VAT

New

Beta 8147S 20-Push Trolleys for Manual Beam Clamps

Code BET-081470020

Add to Basket

Product Information

Beta 8147S 20-Push Trolleys for Manual Beam Clamps

Push trolleys for manual beam clamps

Features

The Beta 8147S 20 is a heavy-duty, professional-grade 2.0-Ton push travel beam trolley from Beta's specialized Robur lifting equipment line.
Its primary purpose is to create a high-capacity, mobile overhead anchor point on structural steel beams. By clamping securely onto the lower flange of an overhead girder, it allows technicians to attach manual lifting devices—such as hand chain blocks or lever hoists—and manually glide heavy loads horizontally across a workshop floor simply by pushing or pulling the payload. It serves as an efficient mechanical transit solution in heavy warehouses, industrial manufacturing plants, and maintenance bays, especially where electric power is unavailable or unnecessary.

Specifications

2.0-Ton Working Load Limit (WLL): This specific ""20"" configuration is rated to handle a maximum Working Load Limit of up to 2,000 kg (2.0 Tonnes). Note: This total threshold must cover the combined weight of both your hoist apparatus and the actual payload.
Strict Safety Standards: Manufactured in full compliance with the European industrial safety standard EN 13157 and engineered with a 4:1 safety factor rating. It features a hard-pinned serial identification plate to guarantee total traceability during strict facility safety audits.

Applications

Heavy Material Logistics: Transporting massive industrial components, heavy machinery, engine blocks, large steel fabrications, and raw materials smoothly along a designated overhead track network.
Non-Powered Work Environments: Providing complete structural load suspension and lateral travel capabilities in field setups, maintenance bays, or remote site zones lacking electrical infrastructure.
Universal Hoist Interface: Serving as a standardized heavy-duty lifting link; its oversized lower suspension eye seamlessly accommodates heavy-duty hooks from all major manual chain block brands.

Comes With

Broad Beam Profile Match: Designed to sit perfectly and roll with minimal friction on a massive variety of standard commercial structural steel profiles, including INP, IPB, IPE, HEA, and HEB beams.
Fast Manual Profiling: Outfitted with an adjustable central structural width bar. By utilizing a manually controlled opening mechanism, a technician can quickly adapt the spacing of the wheels to match the exact dimensions of the local beam flange during installation.
Shock-Absorbing Engineering: Features integrated shockproof wheel guards (suspension lugs). These steel guards protect the internal wheel bearings from severe damage if the trolley bumps into structural end-stops or track obstacles.
