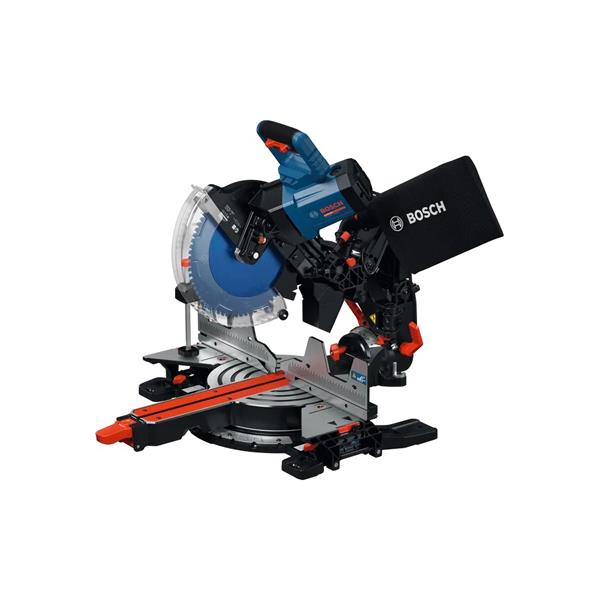

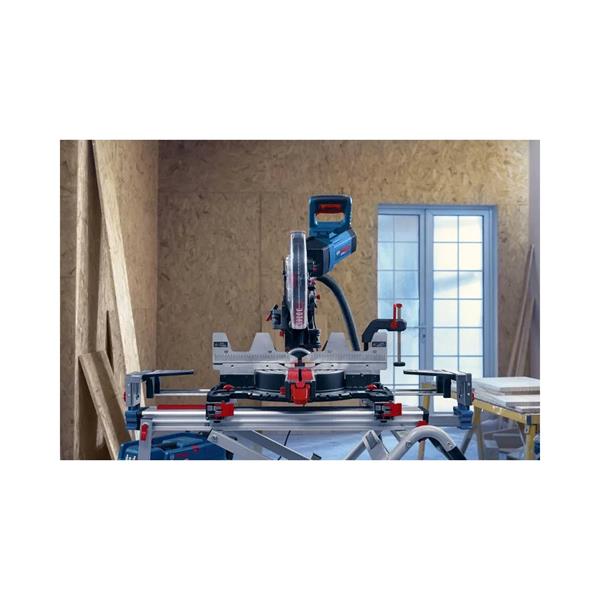

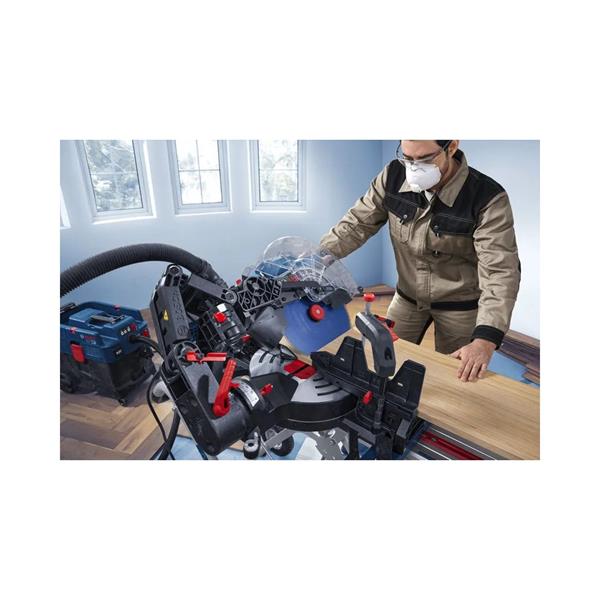

Bosch EXCM341-305GD 230V Expert Mitre Saw

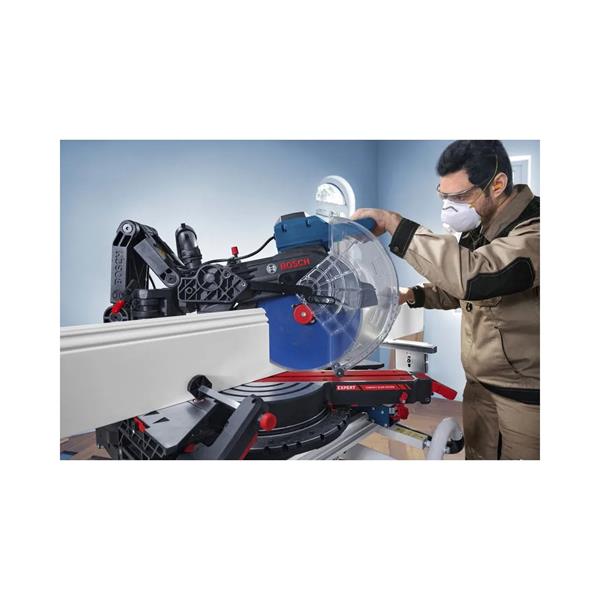

High-performance 2000W sliding mitre saw featuring Bosch's patented Compact Glide System, delivering smooth, accurate cuts while allowing the saw to sit flush against a wall to save workspace. With a large 341mm cross-cut capacity, dual-bevel functionality, Shadow LED cut-line system, and efficient dust extraction, it is ideal for professional framing, flooring, trim, and finish carpentry applications. Designed for precision, versatility, and maximum cutting capacity in demanding workshop and site environments.
Features
- 2000W high-performance motor for demanding cutting applications in timber and construction materials.

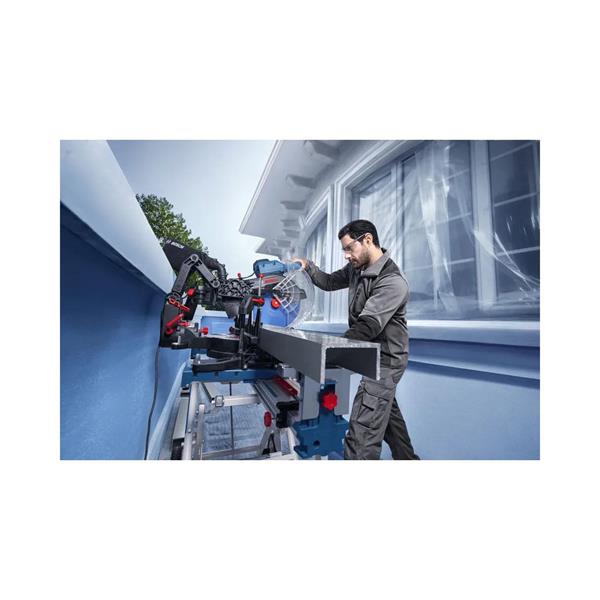

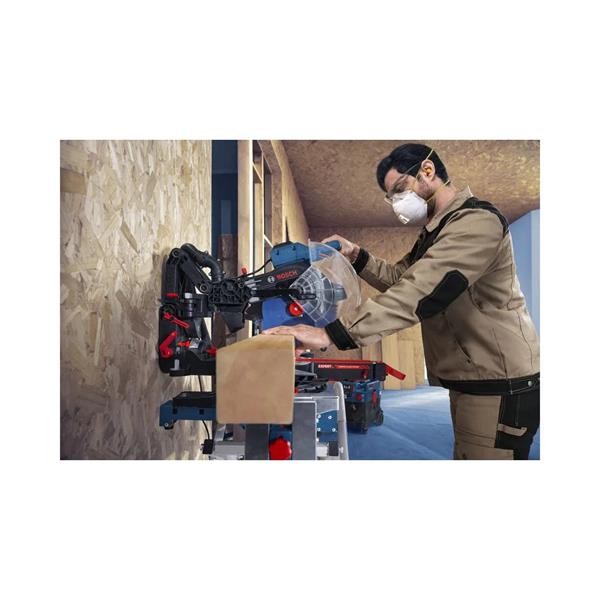

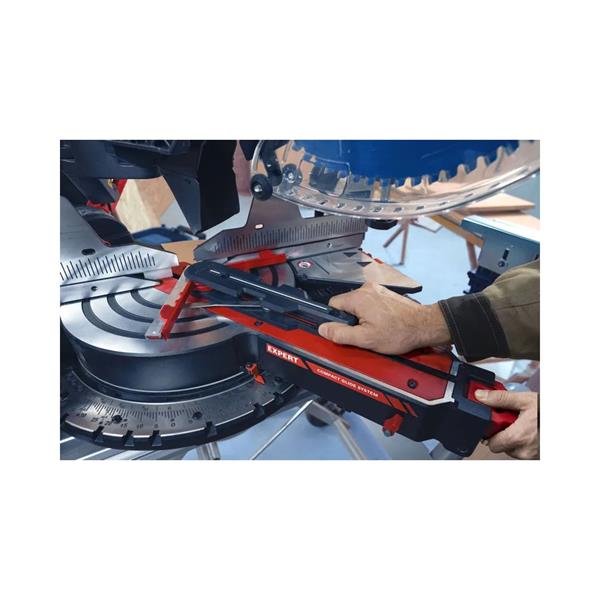

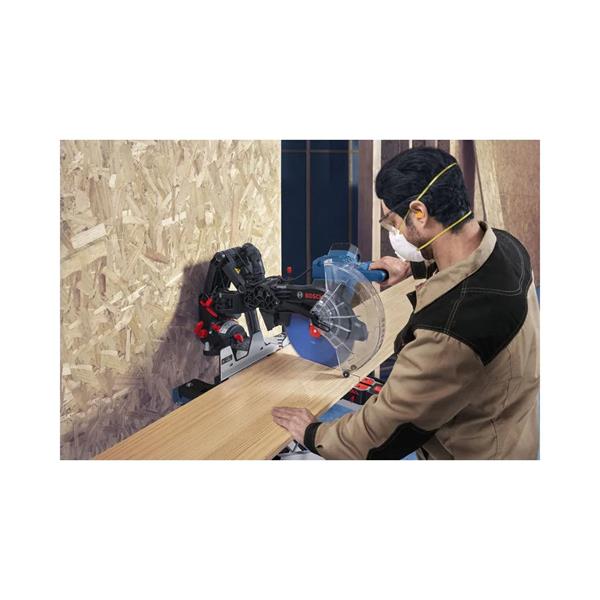

- Patented Compact Glide System allows the saw to operate flush against a wall while maintaining smooth, accurate slide action, saving valuable workshop or site space.
- Large cutting capacity up to 341mm cross-cut width, making it suitable for wide boards, flooring, framing timbers, and finish carpentry.
- Shadow LED cut-line system projects an accurate shadow of the blade onto the workpiece for precise cuts without calibration.
- Wide mitre range of up to 52° left and 60° right for versatile angled cutting.
- Quick-adjust bevel stops at common angles for faster setup and repeatable precision.
Specifications
- Motor Power: 2000W
- Voltage: 220-240V
- Blade Diameter: 305mm
- Blade Bore: 30mm

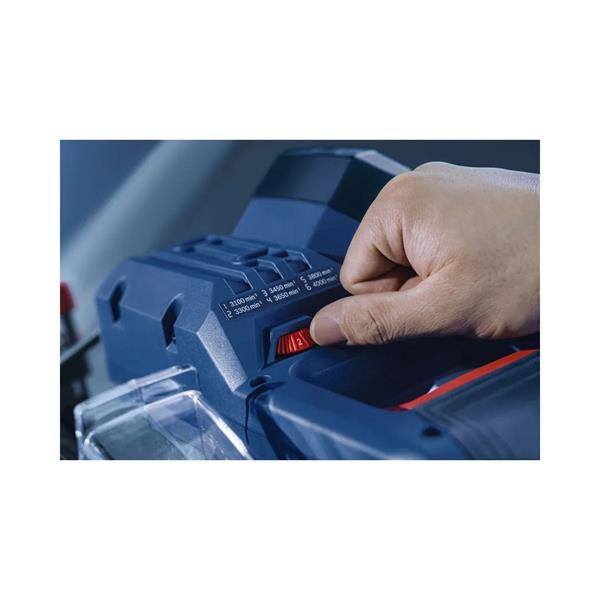

- No Load Speed: 3,100-4,000 RPM
- Max Cross Cut Capacity (90°/90°): 341 x 105mm
- Dual Bevel: Yes
- Mitre Range: 52° Left / 60° Right
- Bevel Range: 47° Left / 47° Right
- Cut Line Indicator: Shadow LED
- Dust Extraction: Integrated High-Efficiency System
- Weight: Approx. 27kg
Applications
- Cross-cutting timber and sheet materials
- Mitre and bevel cuts for trim, mouldings, and skirting boards
- Framing and structural timber work
- Flooring and decking installation
- Kitchen, cabinet, and furniture fitting
- Professional carpentry and joinery applications
- Repetitive production cutting using length stops and material supports
Comes With
- 1 x Bosch EXCM341-305GD 230V Expert Mitre Saw
- 1 x 305mm Expert for Wood Saw Blade (72T)
- 1 x Mitre Gauge / Angle Transfer Tool
- 1 x Dust Bag / Dust Collection Components
- 1 x Material Support Extensions

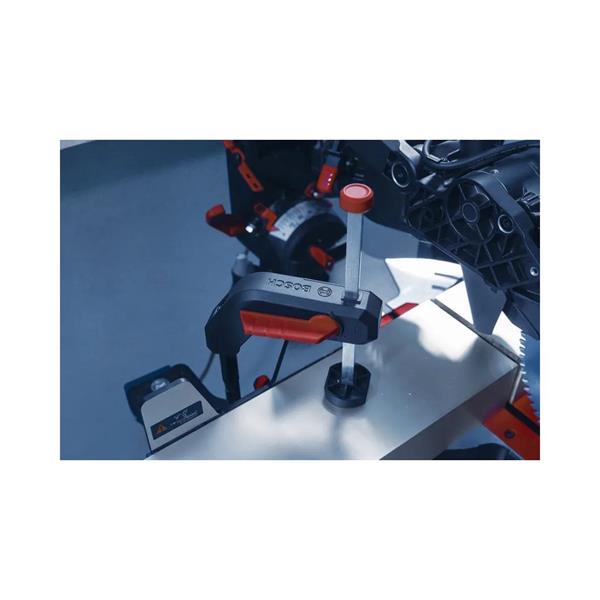

- 1 x Workpiece Clamps
