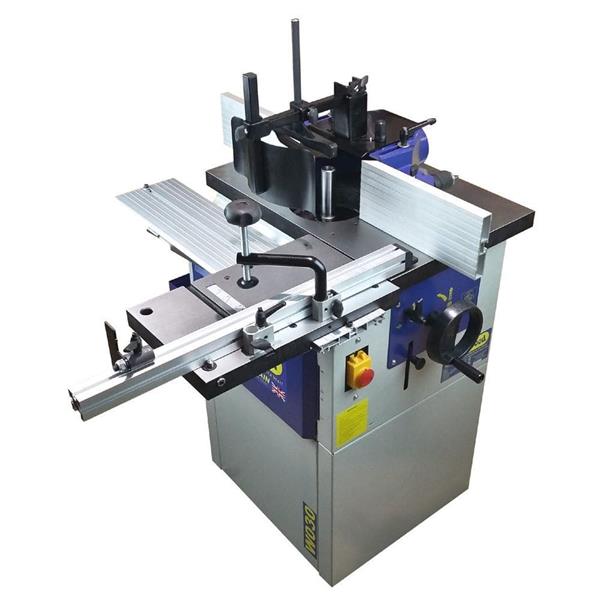

Charnwood W030 Spindle Moulder with Tennoning carriage & Routing Collet

A compact spindle moulder designed for small professional workshops. It bridges the gap between heavy router tables and industrial-sized spindle moulders, offering precision, versatility, and robust cast iron construction.

Features:

Cast iron main table, tenonning table, and cutter hood for stability
1/2” routing collet included
Four speeds: 1500rpm (drum sanding), 4500rpm (hardwood moulding), 6500rpm (softwood moulding), 8500rpm (routing)
Maximum tooling diameter: 160mm
Independently adjustable aluminium fences with outfeed fine adjustment

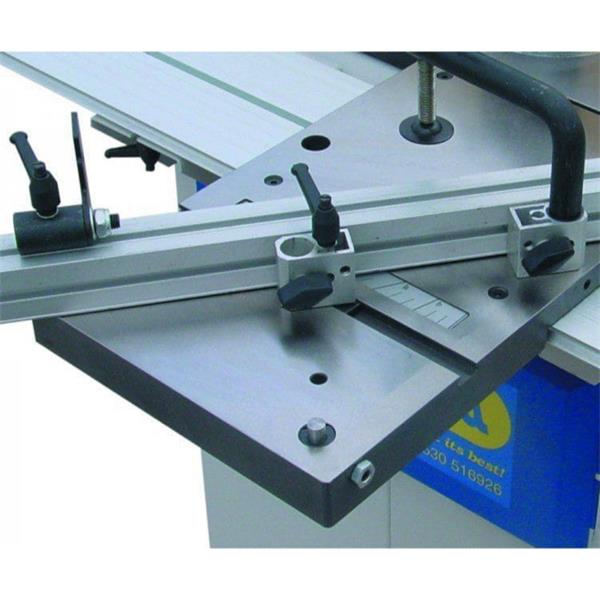

Sliding table with cast iron surface and four bearing guides

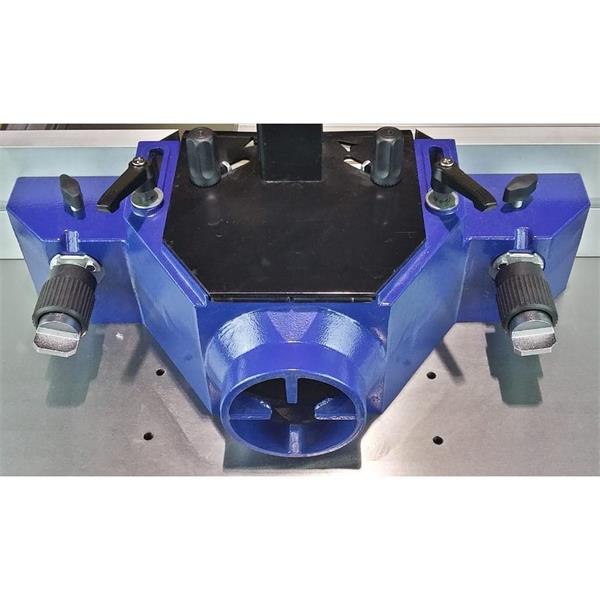

Cutter hood with fully adjustable hold-down and front clamps
Hinged cutter guard for quick access
100mm diameter extraction outlet
Microswitch on front door prevents motor starting when open
Removable main spindle; can be replaced by 1/2” router collet
Edge moulding possible across front or back of table
Sliding carriage fence adjustable between 45° and 90° with quick return stop
Hold-down clamp and flip-over length stop for sliding table
Storage tray for accessories and spare tooling
Adjustable height rubber feet

Specifications:

Product Code: W030
Barcode: 5060281690456
Spindle Diameter: 30mm
Max Tooling Diameter: 160mm (insert rings reduce to 110mm or 70mm)
Spindle Speeds: 1500, 4500, 6500, 8500 rpm
Routing Collet: 1/2” diameter included
Dust Extraction: 100mm diameter outlet (requires high airflow extractor)
Power Supply: UK 3-pin plug, 1.9m cable, standard 13A 240V
Sliding Table Fence Angle: 45°–90° adjustable

Applications:

Edge moulding and shaping for softwoods and hardwoods
Tenoning and panel profiling
Routing operations using 1/2” collet cutters
Drum sanding (optional drum sanding kit)
Accurate crosscutting and angled cuts using sliding carriage
Suitable for small professional workshops requiring compact, versatile spindle moulder solutions
Works with dust extraction to manage chips and maintain clean, safe operation
