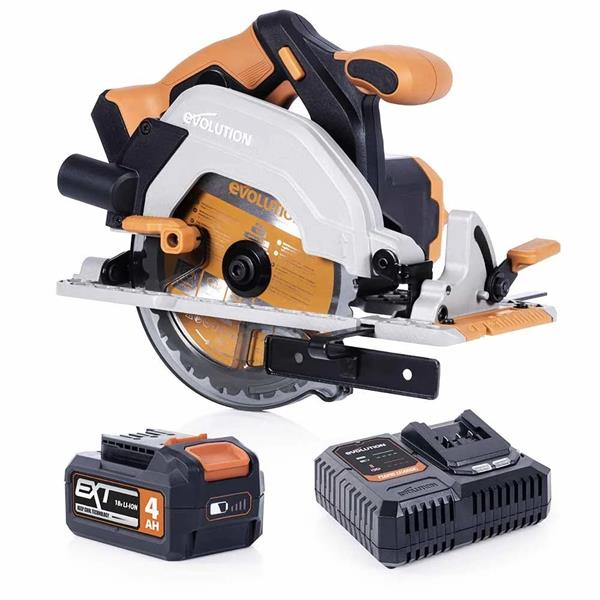

Evolution R165CCS-LI 165mm Circular Saw 18v Li-Ion EXT Inc Multi-Material Blade (1 x 4Ah)

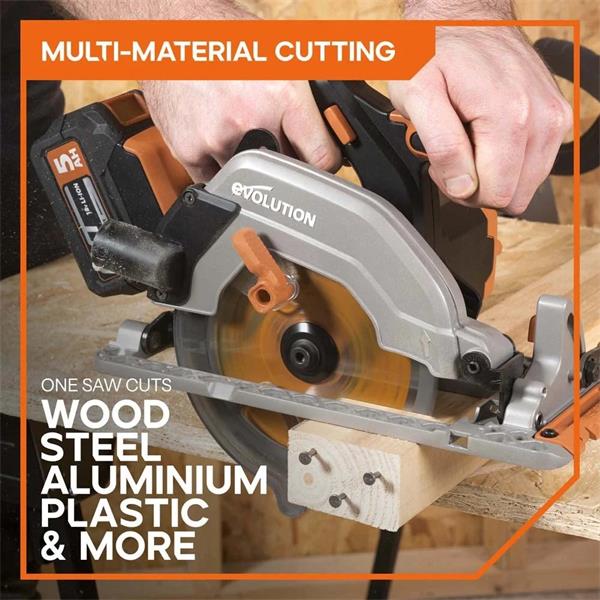

The Evolution R165CCS-Li Cordless Circular Saw delivers precise cuts in new and reclaimed wood, plastics, composites and metals. It’s powerful motor, accuracy and long run times make it the perfect tool for taking on any worksite and its compact size and Multi-Material blade technology make it ideal for any home project. The R165CCS-Li 18V Li-ion Cordless Circular Saw is packed with features; Multi-Material cutting technology, dust collection & vacuum attachment port, its best in class 55mm adjustable depth of cut and 0-50° bevel capability provide real versatility.
Features
- EXT Li-ion cordless performance and versatility
- High Power 850W Brushed DC motor
- Optimised drivetrain for maximum battery life and run time per charge

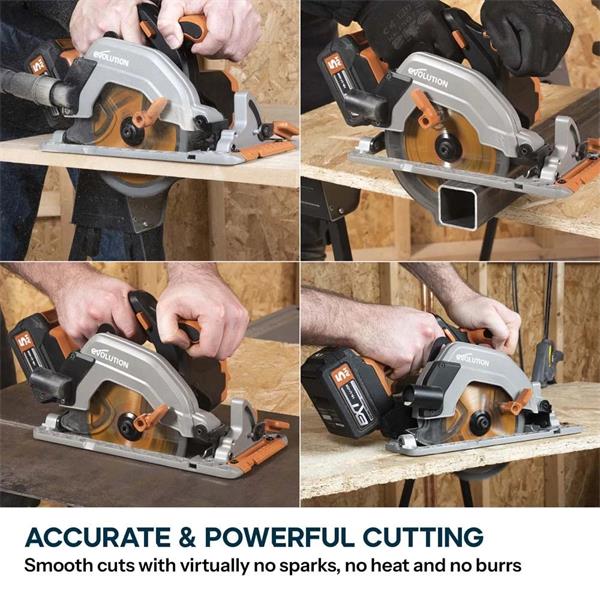

- Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more
- Cast alloy base, trade tough build.
- Ergonomic ambidextrous soft grip handles for control and versatility

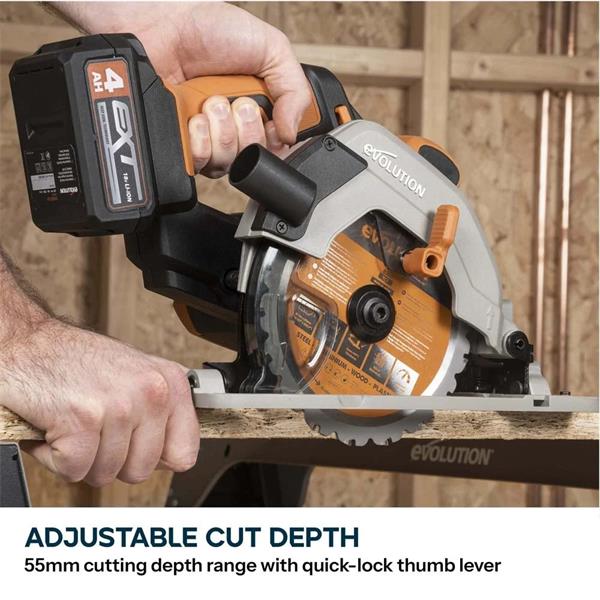

- Best in class, adjustable 55mm depth of cut

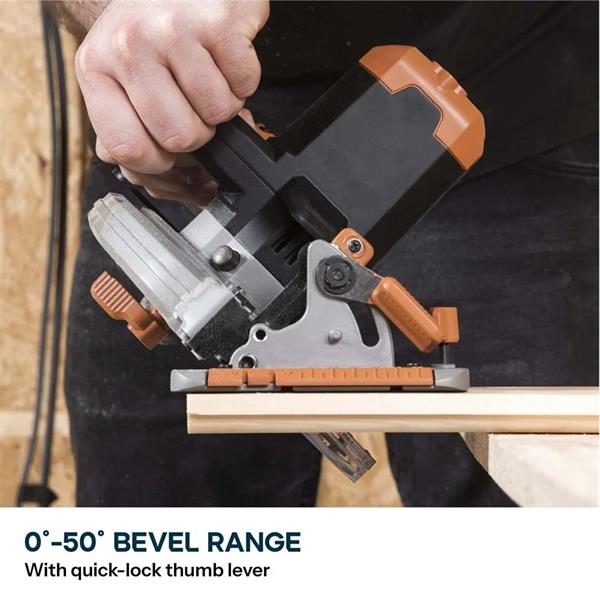

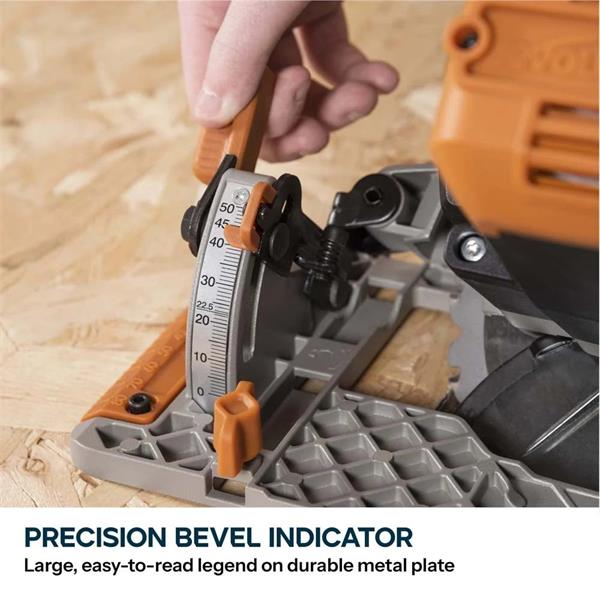

- 0-50° adjustable bevel with virtual blade pivot for perfectly measured cut width
- Shatterproof, see-through polycarbonate blade guard for safe, easy cut alignment
- Soft Start & Quick-Stop Electronic Blade Brake and 2-Step safety trigger for safe motor start-up
- Micro adjustable cut width guide for precision full length board cuts
- Vacuum compatible dust extraction

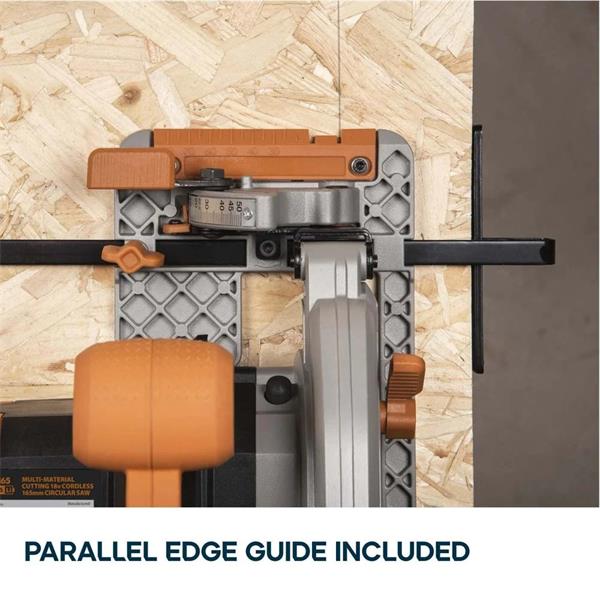

- Reliable straight, smooth and square cutting with parallel edge guide
- 3-Year limited warranty
Specifications
- Name R165CCS-LI
- Product Code 066-0001
- Voltage / (Hz) 18v -50Hz
- Power 850W
- No Load Speed (min-1 rpm) 4600rpm
- Net Weight 3.4kg
- Dust port Adaptor Size 30mm
- Maximum Bevel Capacity (degrees) 50°
- Max Cutting Thickness (plate) 3mm
- Max Wall Thickness 3mm
- Max 90 degree 55mm
- Max 45 Degree 38mm
- Max 50 degree 32mm
- Blade Diameter 165mm
- Max Speed (min-1 rpm,) 5200rpm
- Bore Diameter 20mm
- Kerf 1.7mm
- Sound pressure level Lpa 87.2 db (A); K=3db (A)
- Sound power level Lwa 92 db (A); K=3db (A)
- Vibration ah,w=2,302m/s2 Main Handle-ah,w=2,218m/s2 2nd Handle
Applications
- Cutting wood and timber
- Cutting reclaimed wood with embedded nails
- Cutting plastic and composite materials
- Cutting mild steel and non-ferrous metals
- Rip cuts and cross cuts
- Bevel cutting up to 50°
- DIY, workshop, and construction projects
Comes With

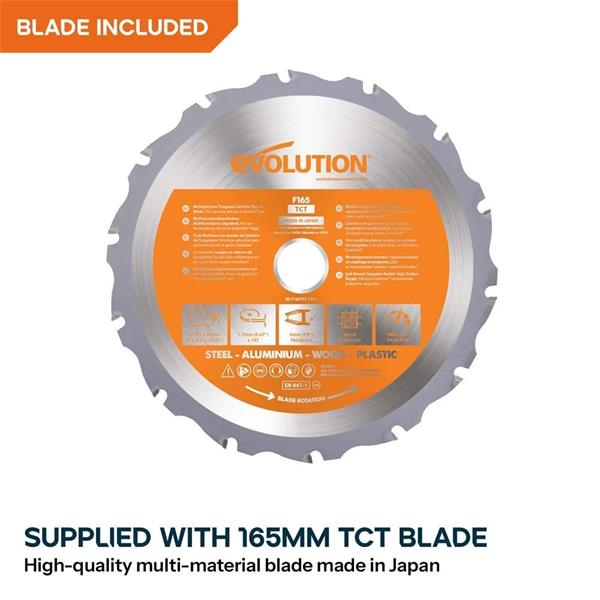

- 165mm 18T Multi-Material TCT blade
- Parallel rip fence/edge guide
- Hex key
- 1 x EVO-106-0002 Evolution R18BAT-Li4 18v 4Ah Li-Ion Battery
- 1 x EVO-108-0001 Evolution R18RCH-Li1 18v Single Port 6 Amp Fast Charger
- Instruction manual
