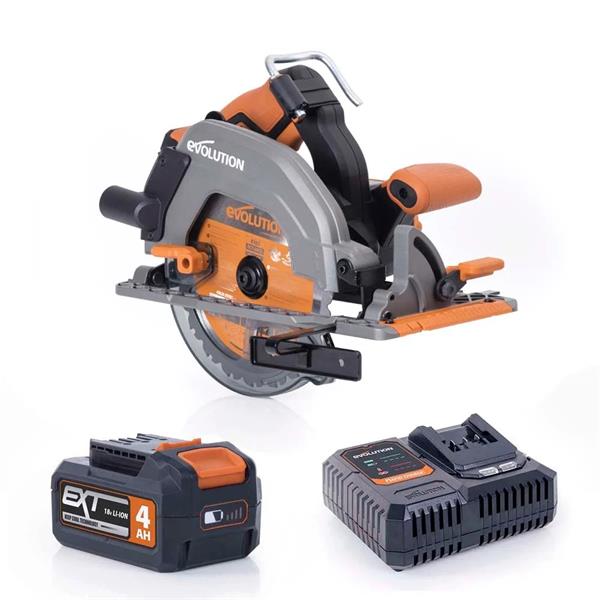

Evolution R185CCS-LI 185mm Li-Ion EXT 18v Brushless Circular Saw (1x4Ah 1xSingle Charger)
The Evolution R185CCS-Li Brushless Cordless Circular Saw features a powerful Brushless DC motor to deliver precise cuts in new and reclaimed wood, plastics, composites and metals. With long battery run times, and Multi-material cutting blade technology and compact size make it's the perfect 1st and 2nd fix circular saw for taking on any worksite, and for tackling any home project. The R185CCS-Li Brushless 18V Li-ion Cordless Circular Saw is packed with features; Multi-Material cutting technology, dust collection & vacuum attachment port, its class leading 64mm adjustable depth of cut and 0-57° bevel capability provide real versatility.
Features
- EXT Li-ion cordless performance and versatility
- High Power 850W Brushless DC motor
- Optimised drivetrain for maximum battery life and run time per charge

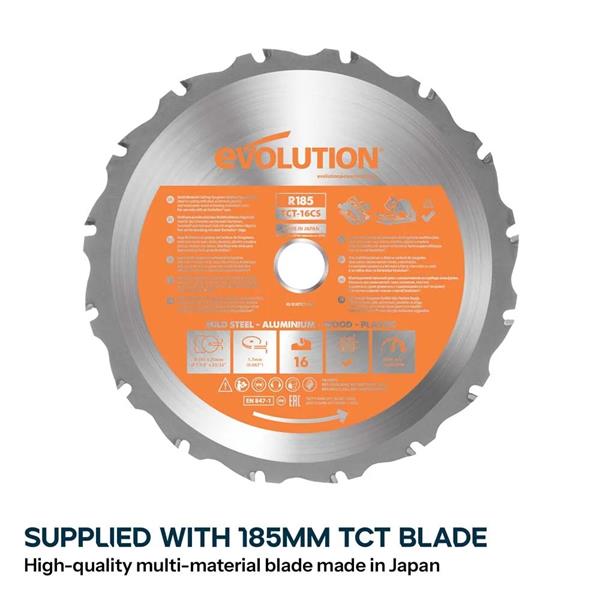

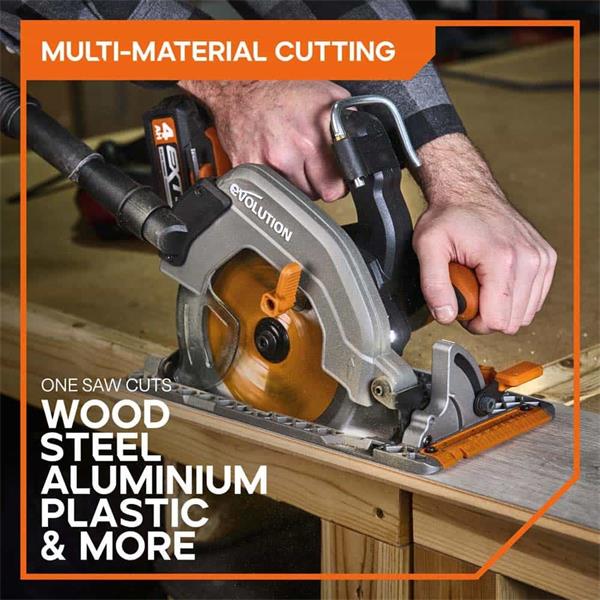

- Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more

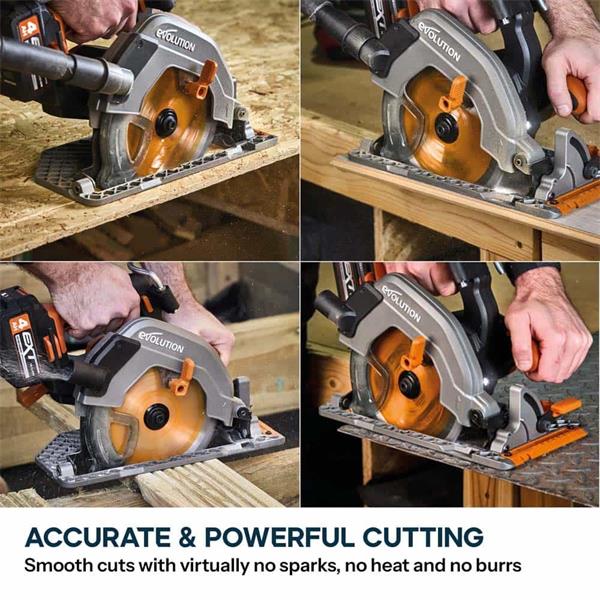

- Virtually spark free cuts, with no heat, no burrs and an instantly workable finish
- Ergonomic ambidextrous soft grip handles for control and versatility

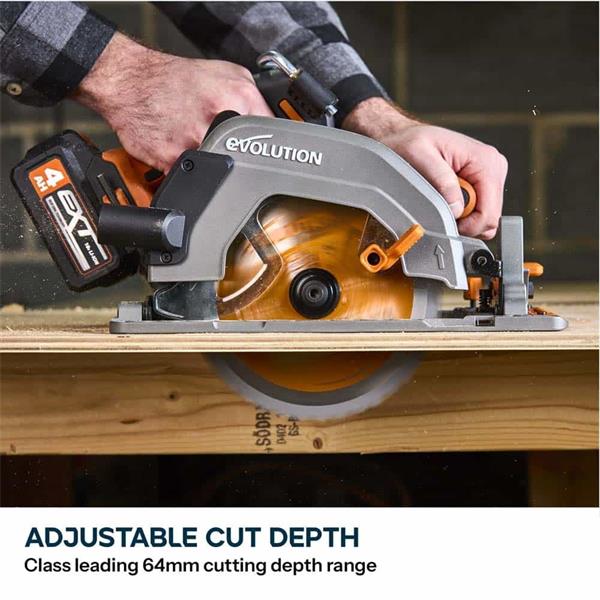

- Class leading, adjustable 64mm depth of cut

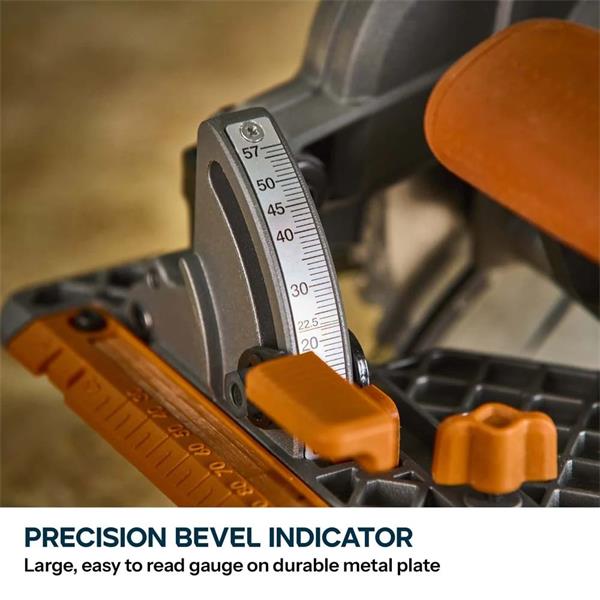

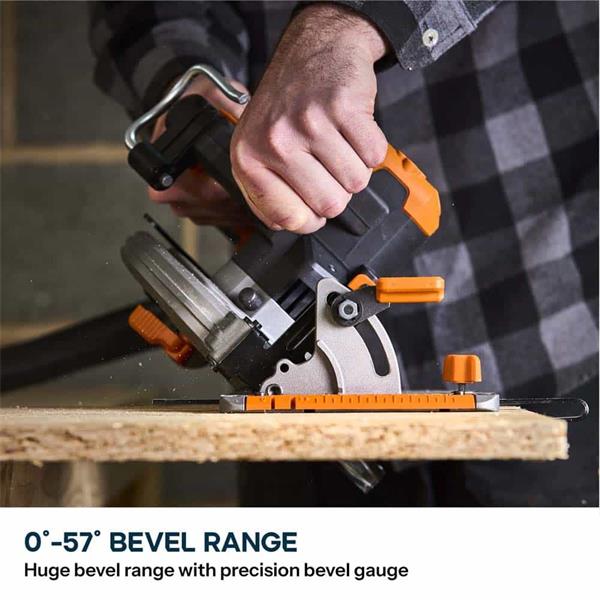

- 0-57° adjustable bevel with metal guide and adjuster body.

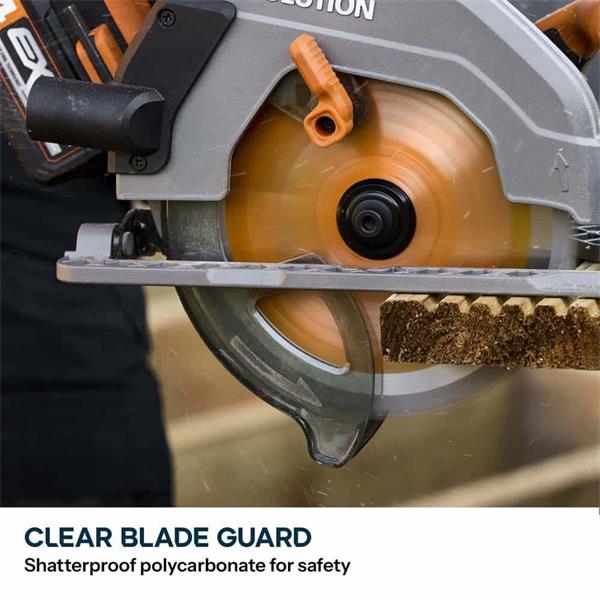

- Shatterproof, see-through polycarbonate blade guard for safe, easy cut alignment
- Soft Start & Quick-Stop Electronic Blade Brake and 2-Step safety trigger for safe motor start-up
- Rafter Hook for easy storage
- Vacuum compatible dust extraction
- 3-Year limited warranty
- NB- Circular Saw carry bag not included.
- Erbauer EXT battery system compatible
Specifications
- Name R185CCS-LI
- Product Code 098-0001
- Voltage / (Hz) 18v -50Hz
- Power 850W
- No Load Speed (min-1 rpm) 4200rpm
- Net Weight 3.8kg
- Dust port Adaptor Size 30mm
- Maximum Bevel Capacity (degrees) 57°
- Max Cutting Thickness (plate) 3mm
- Max Wall Thickness 3mm
- Max 90 degree 64mm
- Max 45 Degree 44mm
- Max 57 Degree 31mm
- Blade Diameter 185mm
- Bore Diameter 20mm
- Kerf 1.7mm
- Product Dimensions 230 x 360 x 225mm
- Packaging Dimensions 263 x504 x280mm
- Sound pressure level Lpa 87.2 db (A); K=3db (A)
- Sound power level Lwa 92 db (A); K=3db (A)
- Vibration ah,w=2,302m/s2 Main Handle ah,w=2,218m/s2 2nd Handle
Applications
- Cutting timber & sheet materials
- Carpentry & joinery work
- Decking and flooring installation
- General construction projects
- Renovation & refurbishment
- Cutting plastic pipes and profiles
- Cutting aluminium and non-ferrous metals
- DIY and workshop fabrication jobs
- Demolition work with nail-embedded wood
Comes With
- Cordless 18V Li-Ion EXT platform
- Powerful brushless motor
- Adjustable bevel cutting from 0° to 57°
- Up to 64mm cutting depth
- Electronic blade brake
- Soft-start motor
- Shatterproof transparent blade guard
- Compatible with Evolution and Erbauer EXT 18V batteries
- 1 x EVO-106-0002 18v 4Ah Li-Ion Battery
- 1 x EVO-108-0001 18v Single Port 6 Amp Fast Charger
