Evolution R185CCSX+ 1600W 185mm Track Circular Saw

€159.95 Inc. VAT

Code EVO-027-0001A

Product Information

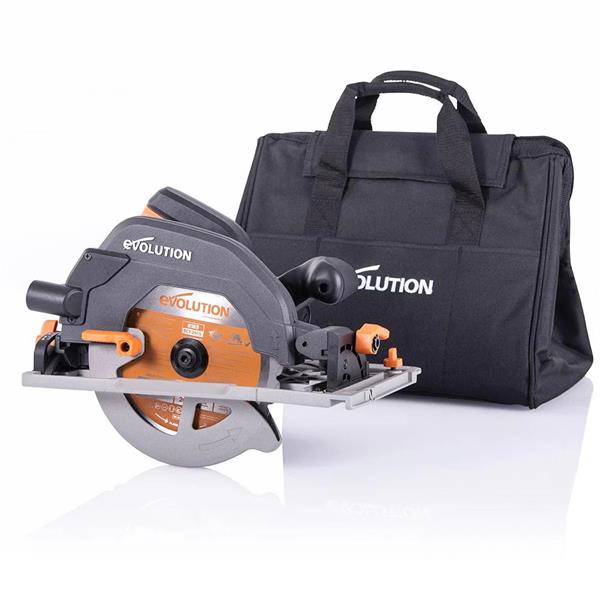

Evolution R185CCSX+ 1600W 185mm Track Circular Saw

The Evolution R185CCSX is a 185mm track-compatible circular saw designed for accurate cutting across multiple materials. It features a 1600W motor, adjustable depth of cut, and bevel capability, and is supplied with a track system for guided, straight cutting.

Features:

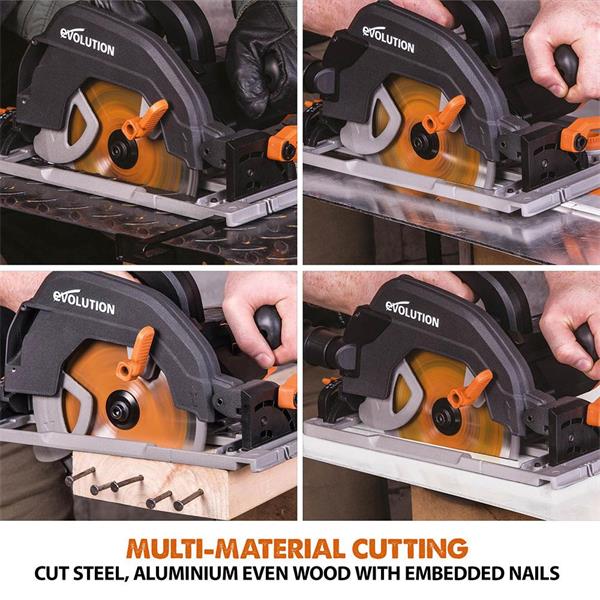

• Multi-material cutting technology

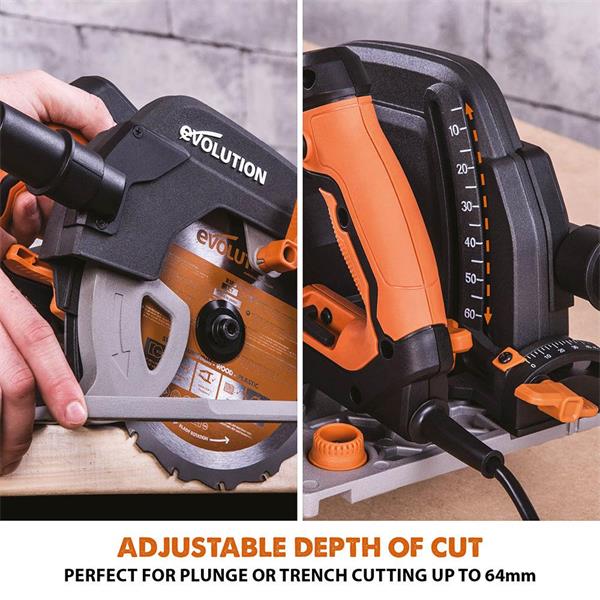

• Adjustable 64mm depth of cut (for trench cutting)

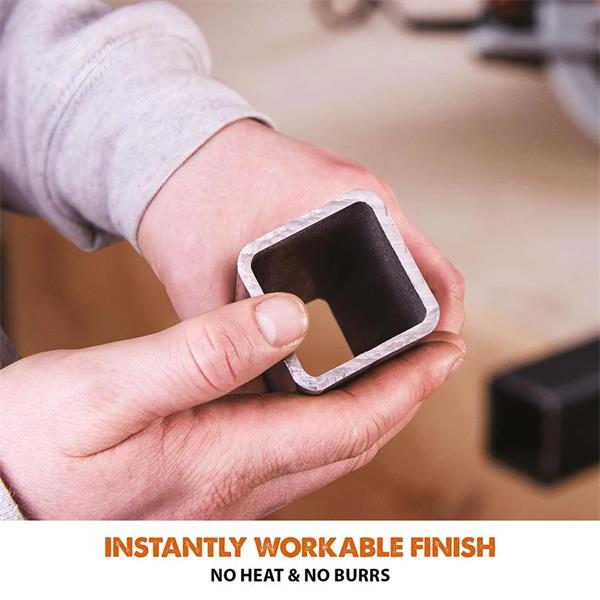

• Smooth square cutting across a variety of materials

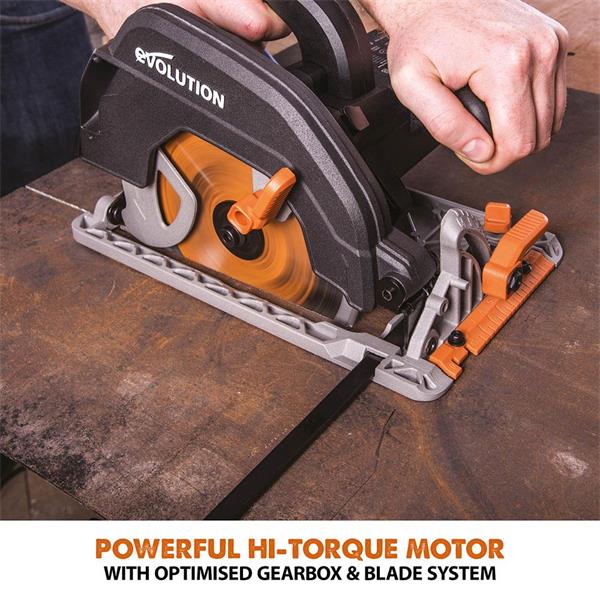

• 1600W hi-torque motor with optimized gearbox and blade system

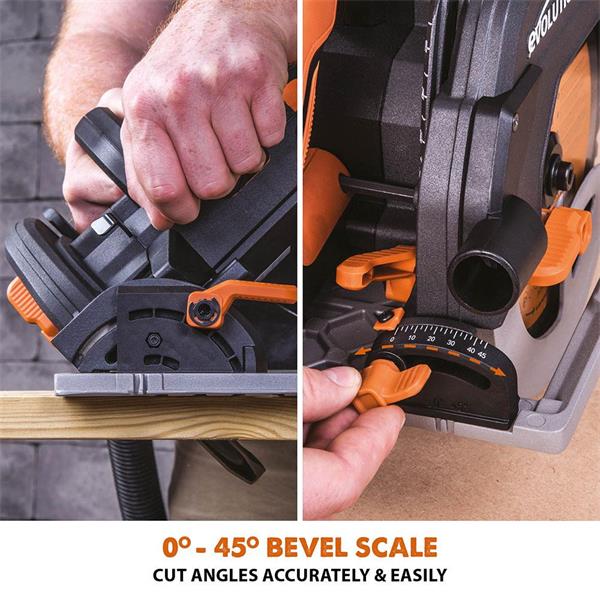

• 0°–45° bevel tilt with virtual pivot for consistent cutting line on track

• Ergonomic soft-grip handles for control and precision

• Dust extraction port and adaptor included

• 1020mm circular saw track included (3-piece with connectors)

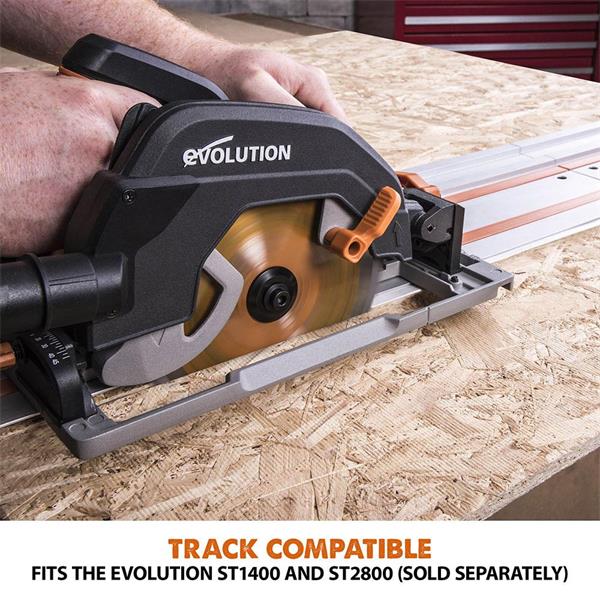

• Compatible with Evolution 1.4m and 2.8m tracks (sold separately)

• Robust construction with even weight distribution (4.8kg)

• Channelled airflow and base indicators for cutting line visibility

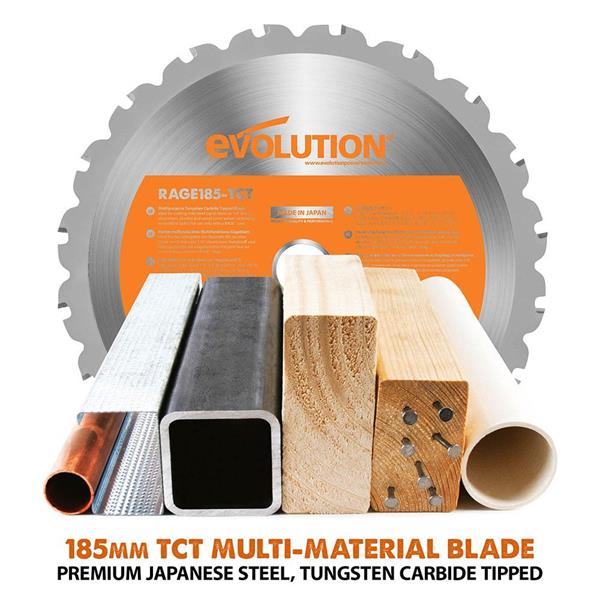

• Includes premium 185mm TCT blade

• 3-year limited warranty


Specifications:

• Motor (110V 50Hz): 1600W

• Motor (240V 50Hz): 1600W

• No-load speed (110V): 3700 rpm

• No-load speed (240V): 3900 rpm

• Max bevel: 45°

• Blade diameter: 185mm

• No. of teeth: 16

• Bore: 20mm

• Kerf: 1.7mm

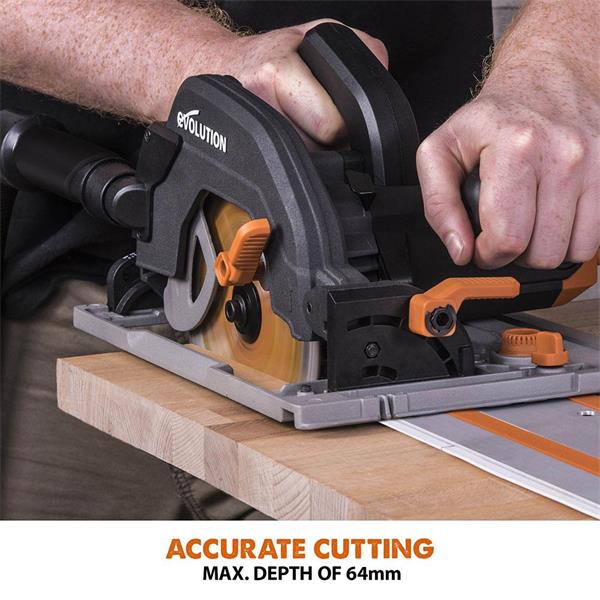

• Max depth of cut (0°): 64mm (59mm with track)

• Max depth of cut (45°): 47mm (42mm with track)

• Product dimensions: 255 × 375 × 265 mm

• Packaging dimensions: 380 × 300 × 250 mm

• Product weight: 5.1kg

• Packaged weight: 8.3kg

• Cable length: 3m

• Sound pressure level: 94.3 dB(A)

• Sound power level: 105.3 dB(A)

• Vibration (wood sawing main handle): 3.347 m/s²

• Vibration (wood sawing auxiliary handle): 3.119 m/s²

• Vibration (metal sawing main handle): 3.572 m/s²

• Vibration (metal sawing auxiliary handle): 3.241 m/s²

• Uncertainty K: 1.5 m/s²


Applications:

• Cutting wood and wood-fibre board materials

• Trench cutting applications

• General construction cutting tasks

• On-site carpentry work

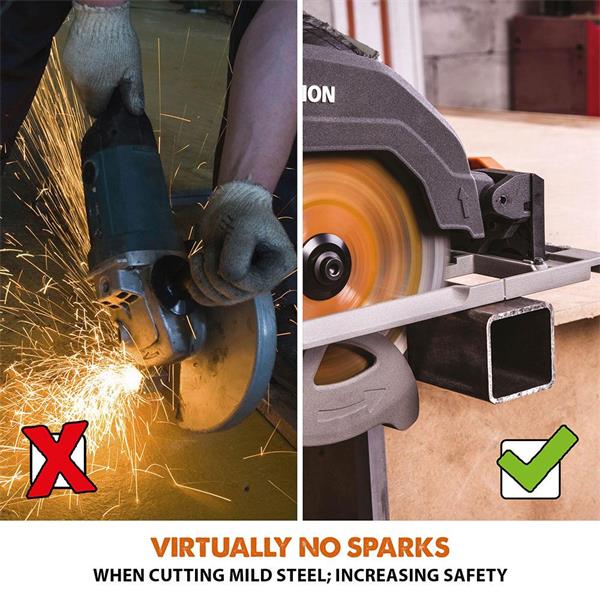

• Metal cutting (up to specified limits)

• Precision straight cuts using track system


Comes With:

• 16T multi-material TCT blade

• Hex key (blade change)

• Hex key (track connecting)

• Parallel edge guide

• Dust port adaptor

• Dust hose connector

• 1020mm track (3 × 340mm sections)

• Connector bars (x4) and screws (x16)
