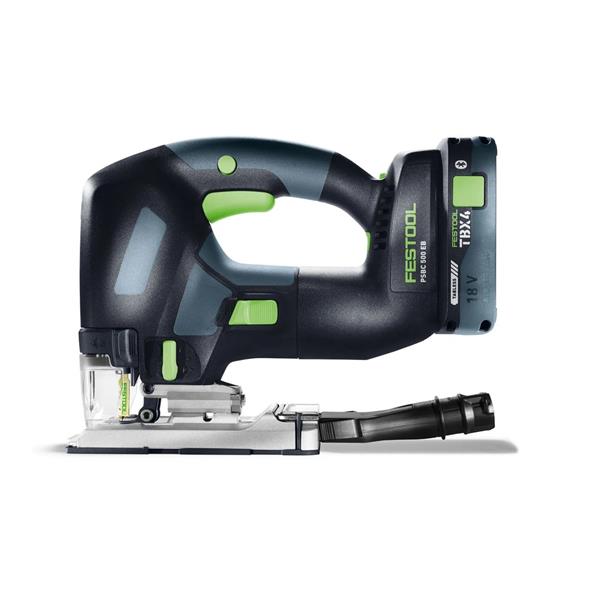

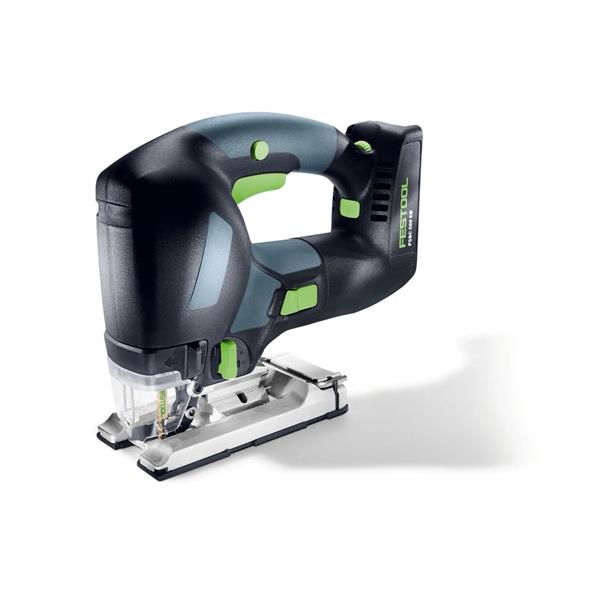

Festool PSBC 500 EB-Basic Cordless Pendulum Jigsaw (Bare Unit)
The cordless pendulum jigsaw PSBC 500 sets new standards: With a cutting depth of up to 120 mm and powerful traction even through solid wood, it tackles every challenge – from large cross-sections to tight curves. The three-way saw blade guide ensures precise, angle-accurate cuts. Thanks to smart accessories such as the circle cutter, your jigsaw becomes a true multi-purpose tool. The powerful and ergonomic TBX 4 battery ensures rapid progress and is compatible with all your 18V cordless tools and chargers. The PSBC 500 delivers on its promises: Precision, versatility, and uncompromising power – for professionals who demand more.
Features
- Versatile: excels in large cross-sections in solid wood, tight curves or angled cuts with a cutting depth of up to 120 mm and intelligent accessories.
- Precise: Enhanced three-point guidance and guiding jaws ensure accurate, angle-true cuts.
- Powerful: Consistent torque thanks to an advanced machine concept – effortless even with large cross-sections in solid wood.

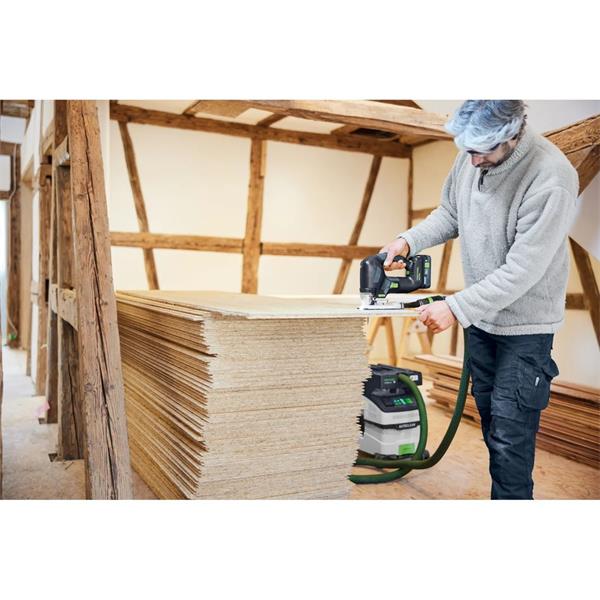

- Unobstructed view: Blowing function, deactivatable lighting and extraction ensure a clear view of the scribe mark.
- Time-saving: Tool-free FastFix saw blade replacement saves time and facilitates uninterrupted work.
- Optimal cutting quality: The splinter guard minimises splintering on both sides – delivering clean cut edges and reducing the need for reworking.
- Suitable for the material: Adjustable speed and automatic startup for precise operation and efficient cuts.
- Sawing progress: The pendulum stroke can be promptly adjusted to meet the specific requirements – ensuring swift feed and accurate results.
- Angle-accurate: The table can be adjusted for angled cuts and locks at 0° – for precise 90° cuts.
- Stay Connected: Access operating data, accessories, and extractor control via Bluetooth and the Festool app.
Specifications
- Battery voltage (rated voltage) 18 V
- Stroke rate 1 000 - 3 800 min?¹
- Pendulum cover adjustment in stages 4.00
- Stroke length 26.00 mm
- Cutting depth in wood 120.00 mm
- Cutting depth in NF metals 20.00 mm
- Cutting depth in steel (soft) 10.00 mm
- Max. inclined position (both sides) 45.00 °
- Drive type Battery
- Product weight without accessories 2.40 kg
- Transport weight incl. accessories 4.80 kg
- Centre 26.00 mm
Applications

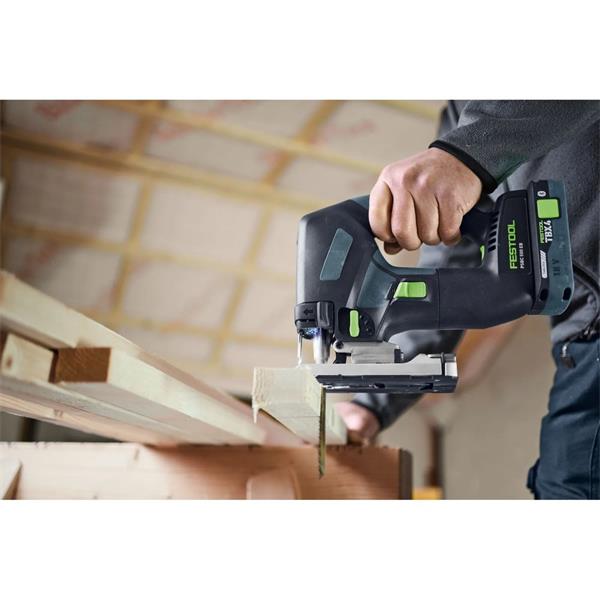

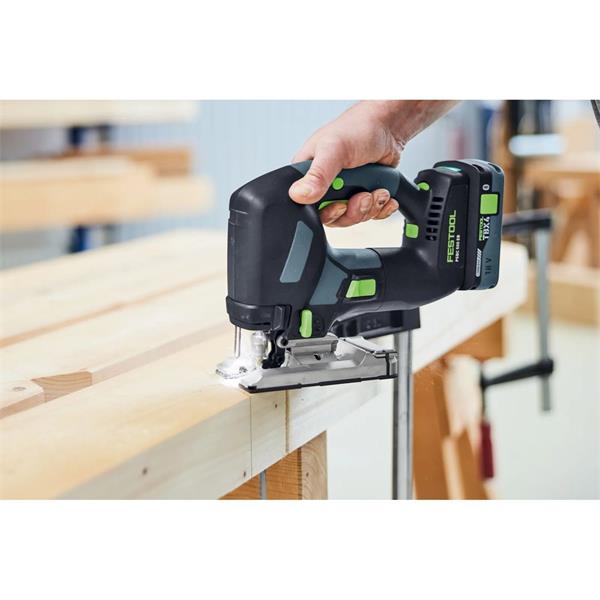

- Precise straight and curved cuts in wood and timber materials.
- Cutting MDF, plywood, chipboard and laminated boards.

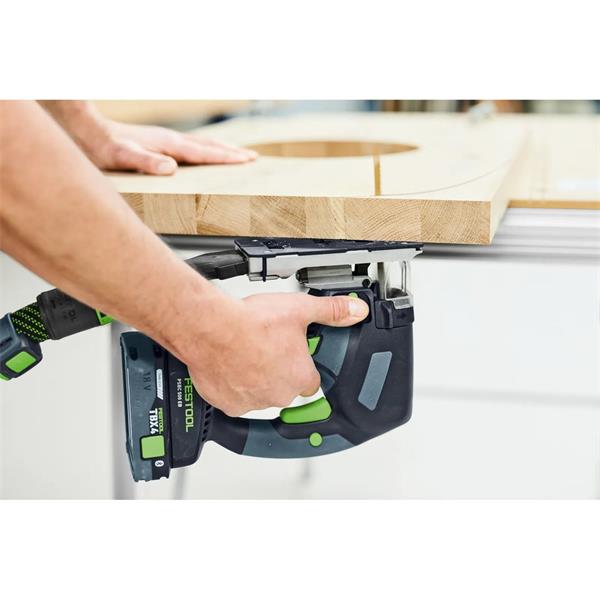

- Cut-outs for sinks, worktops and interior fittings.

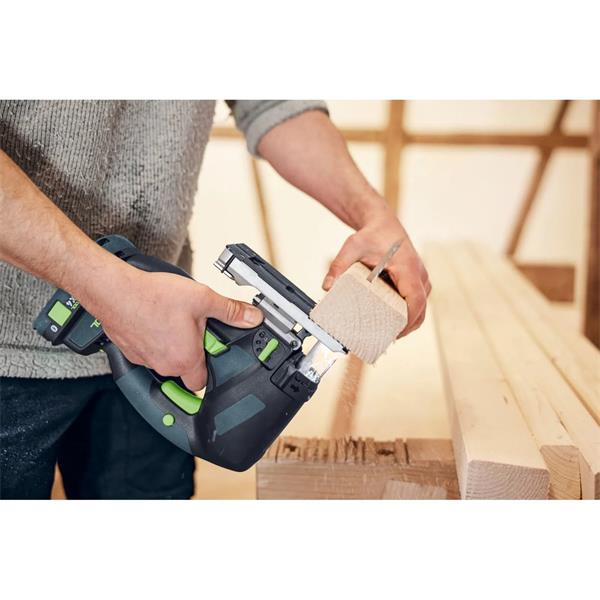

- Plunge cuts and internal cut-outs.
- Bevel cuts up to 45°.
- Cutting plastics and non-ferrous metals with the appropriate blade.
- Ideal for cabinetmaking, joinery, furniture installation and finishing work.

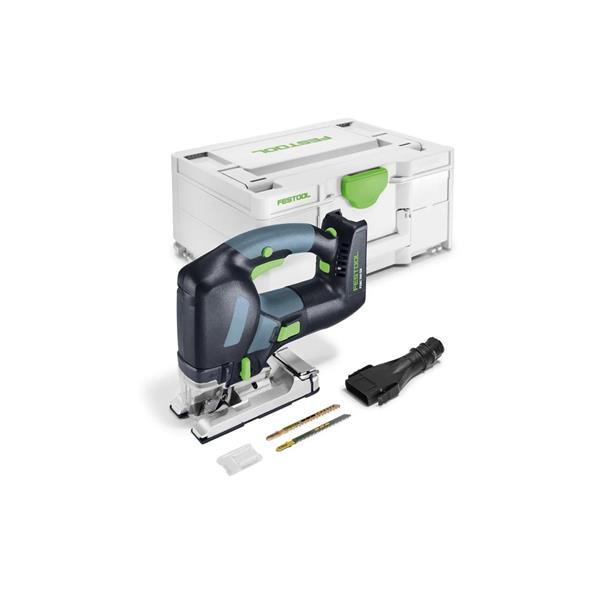

Comes With
- PSBC 500 EB Cordless Pendulum Jigsaw.
- 2 x Jigsaw blades:
- WOOD FINE CUT S 75/2.5
- WOOD UNIVERSAL S 75/4 FSG
- Splinterguard(s).
- Extractor connector.
- Systainer SYS3 M 187 storage case.
