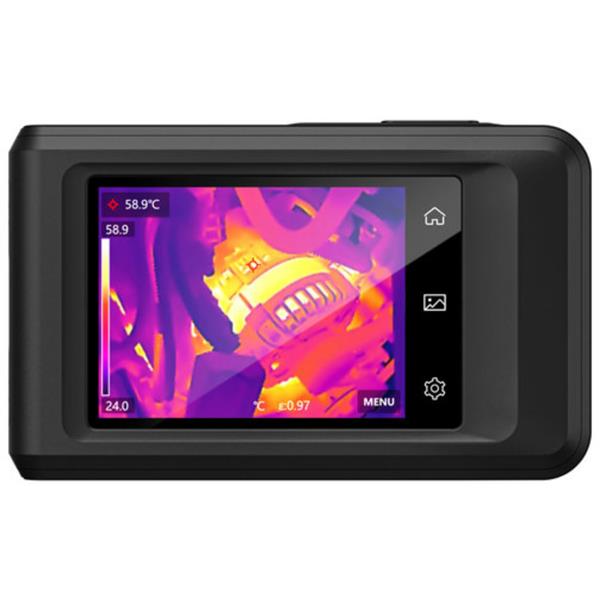

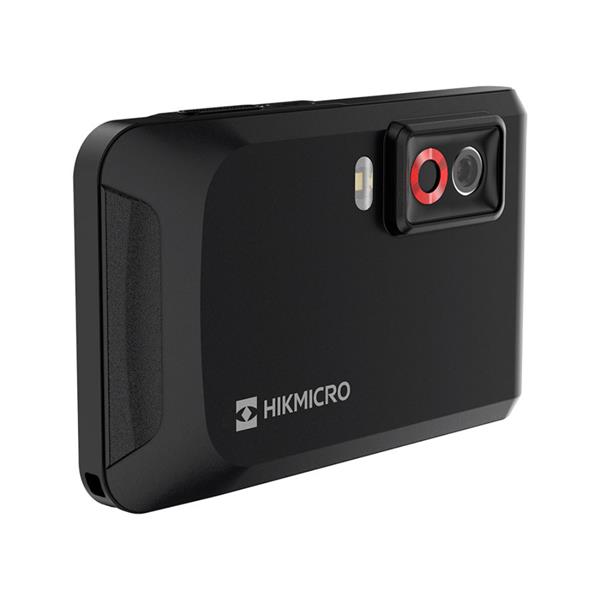

HIKMICRO PocketE Pocket Thermal Camera
The HIKMICRO Pocket Series Thermal Camera is a compact, powerful thermography tool designed for fast and accurate temperature measurement. Featuring a high-resolution VOx detector, 0.3 MP visual camera, and a 3.5″ LCD touch screen, it helps professionals quickly identify hidden faults and abnormal temperatures. With built-in Wi-Fi and a wide temperature range, the Pocket Series delivers reliable performance wherever inspections are needed.
Features:
- Thermal resolution: 96 × 96 (9,216 pixels), NETD < 50 mK
- SuperIR image enhancement up to 240 × 240 (57,600 pixels)
- Temperature measurement range: -20°C to 350°C (-4°F to 662°F)
- 112:1 distance-to-spot ratio
- Measurement accuracy: ±2°C / ±2%
- 25 Hz real-time image frequency
- Multiple image modes: Thermal, Visual, Fusion, PIP, Blending
- 1.0× – 4.0× continuous digital zoom
- High-temperature alarm
- Built-in 4 GB storage
- Wi-Fi image sharing
- LED work light
- Up to 4 hours continuous operation
- Compact, lightweight design — true pocket-size convenience
Specifications:
- Infrared Imaging
- IR Resolution: 96 × 96
- SuperIR Resolution: 240 × 240
- Detector Type: VOx, 12 μm pitch
- Spectral Range: 7.5 – 14 μm
- NETD: < 50 mK (@ 25°C, F1.0)
- Frame Rate: 25 Hz
- Field of View: 50° × 50°
- Minimum Focus Distance: 0.1 m
- Focus Mode: Focus-free
- Display & Visual Camera
- Visual Camera: 640 × 480 (0.3 MP)
- Display: 3.5″ LCD Touch Screen (320 × 240)
- Digital Zoom: 1.0× – 4.0×
- Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue-Red
- Measurement & Analysis
- Temperature Range: -20°C to 350°C
- Accuracy: ±2°C / ±2%
- Measurement Tools: Center Spot, Hot Spot, Cold Spot
- Level & Span: Auto / Manual / 1-Tap
- Storage & Communication
- Internal Memory: 4 GB
- Image Capacity: ~30,000 images
- Video Capacity: ~20 hours
- Video Format: MP4
- Annotations: Text notes (up to 200 characters)
- Connectivity: Wi-Fi 802.11 b/g/n, USB-C
- Battery: Rechargeable Li-ion
- Operating Time: ~4 hours
- Charging Time: ~2.5 hours
- Protection Rating: IP54
- Drop Test: 2 m
- Weight: ~218 g
- Dimensions: 138.45 × 85.2 × 23.6 mm
- Tripod Mount: UNC ¼”-20
Applications:
- Building & home inspections
- HVAC diagnostics
- Electrical system inspection
- Mechanical equipment maintenance
- Preventive maintenance & troubleshooting
- Energy audits

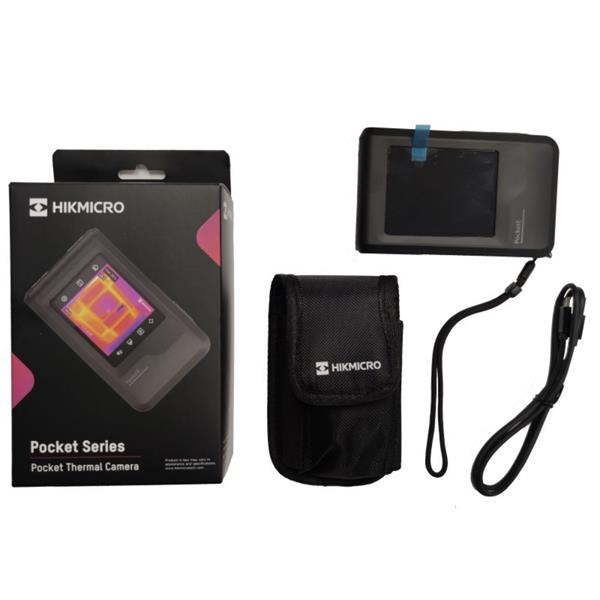

Includes:
- HIKMICRO PocketE Pocket Thermal Camera
- Quick Start Guide
- Charger
- Carry Pouch
