Hogert Hole Designation Template

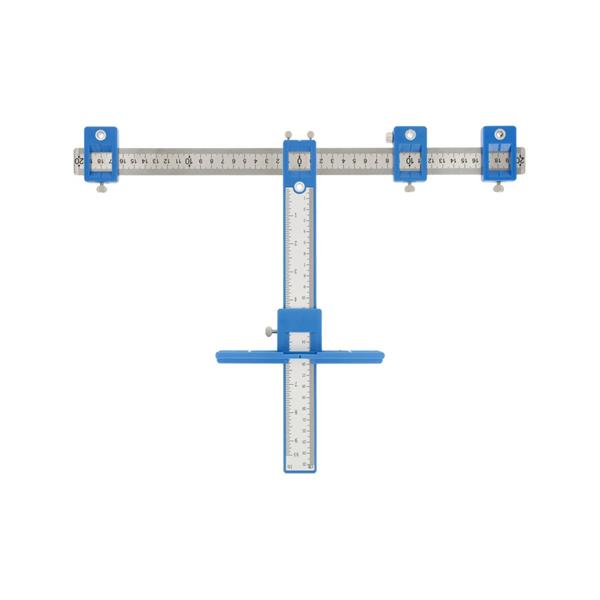

A template with slide is designed for precise marking of drilling points. It is mainly used in joinery. The main rail with the measure applied allows points to be marked, up to 250 mm deep into the front of the furniture. On the upper part of the tool, there is a movable steel rail on which three sliding markers are placed for precise marking of drilling points. At the same time, it is possible to determine four holes at different distances from each other and, by blocking the settings, make markings for the holes in the next front.
Features
- Max. spacing of markings 400 mm;
- Max. depth of marking in the front – 250 mm;
- Hole diameter – 5 mm;
- Units of measurement – cm/inch;
- Material – aluminium, ADS.
Specifications
- Brand HOGERT
- Material ABS/steel
Applications
- Precise marking of drilling points
- Ideal for joinery and furniture installation
- Marking multiple hole positions at set distances
- Repeating hole layouts consistently on multiple workpieces
- Suitable for wood, metal and plastic
- Used for cabinet handles, fittings and hardware alignment
Comes With
- Main measuring rail with scale
- Movable steel rail with sliding markers
- 3 adjustable clamps with fixing screws
- Built-in limiter for positioning and stability
