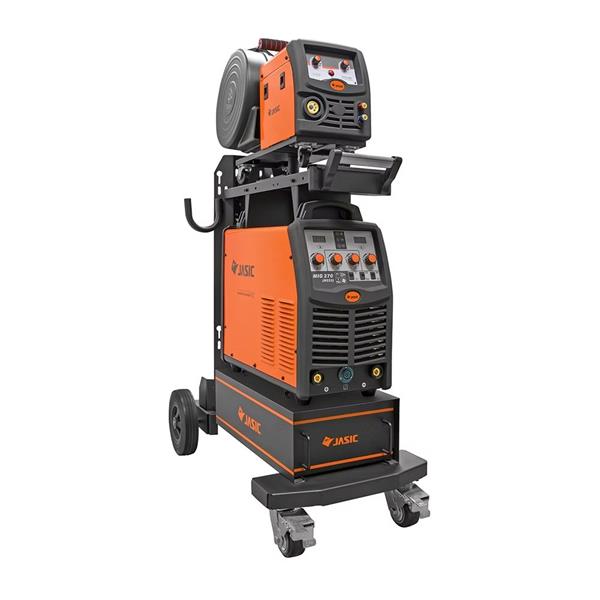

Jasic JT-ZXJM-272S Inverter Mig Welder With Seperate Wire feed Unit And Welding Torch 270 Amp
The Jasic MIG 270 Separate inverter welder is equipped with powerful IGBT components, a digital A/V display and multi process capabilities.
This modular inverter package offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles.
This high quality 230V MIG welder delivers an impressive 270 amps at 30% duty cycle, making it an excellent choice for single phase applications.
Features
- Single Phase IGBT MIG inverter welder
- High powered 230V welding machine
- Digital amp and volt meters
- 4 Roll wire feed unit
- High duty cycle - single phase inverter
- Advanced control circuitry
- Suitable for 0.6/0.8/1.0 and 1.2mm wires
- Burn back control & wire inching
- 2T/4T trigger function
- Power & status LED's
- Gas check function
- Variable inductance
- Inverter trolley takes full size gas cylinder
- AVR generator friendly
Specifications
- Power AC 230V-50/60 Hz
- Volts Range 11-29
- No-Load V 54
- Feed Wire Roll 0-16 m/min 0.6-1.2mm
- Power Factor 0.75
- Power Source 760 x 365 x 585
- Fuse 60A
- AMPS MMA Range 20-270
- Mig Range 10-270
- IP Calss: IP21S
- Power source 29 kg
- Duty cycle 270A at 30%
- Efficiency 85 percent
Applications
- MIG/MAG welding of mild steel, stainless steel, and other weldable metals in fabrication and repair applications.
- MMA (Stick) welding for construction, maintenance, and site work.
- Workshop fabrication and general engineering projects.
- Agricultural equipment repair and maintenance.
- Automotive repair, chassis fabrication, and vehicle bodywork.
- Structural steel fabrication and assembly.
- Manufacturing and production environments requiring reliable multi-process welding.
- Installation and maintenance work both in workshops and on-site.
- Medium to heavy-duty welding applications where higher output and duty cycles are required.
- Suitable for professional welders, fabricators, maintenance engineers, and industrial users.
Comes With
- 1 × MIG 270 Separate Inverter Power Source.
- 1 × 4-Roll Wire Feed Unit.
- 1 × Inverter Trolley (suitable for a full-size gas cylinder).
- 1 × 5 m Interconnecting Cable.
- 1 × MIG Welding Torch.
- 1 × Work Return Lead and Earth Clamp.
- 1 × Gas Hose.
- 1 × Gas Regulator.
- 1 × Operating Instructions Manual.
