Kreg Mortise Mate Loose Tenon Jig KLTJ100

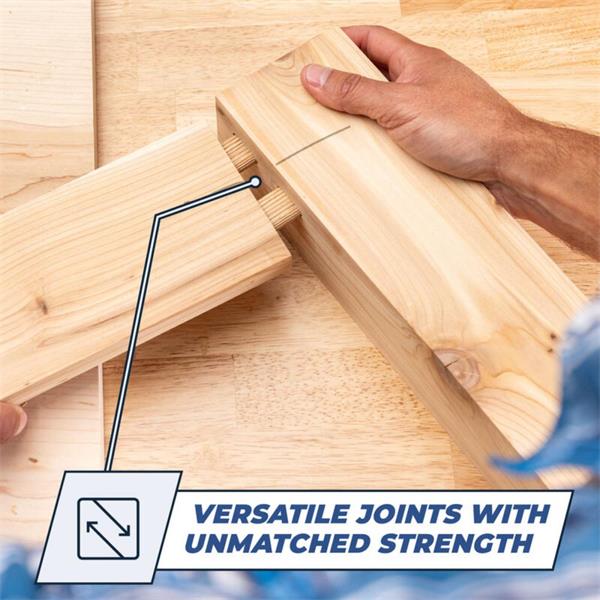

The Kreg MortiseMate Loose Tenon Jig (KLTJ100) is a precision jig that allows you to cut mortises for loose tenon joinery using a standard drill instead of a router. It is designed to simplify mortise-and-tenon joinery, making it accessible for cabinetry, frames, panels, and furniture projects. The jig provides accurate and repeatable mortises for strong, hidden joints.
Features:

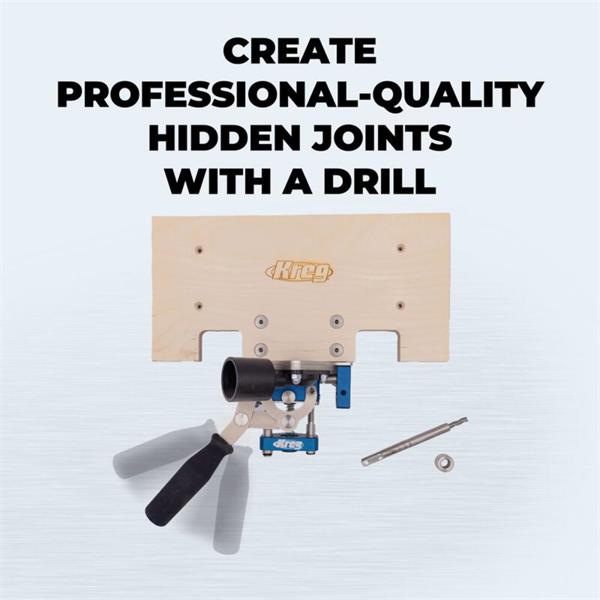

- Cut mortises (loose tenon joinery) with just a drill

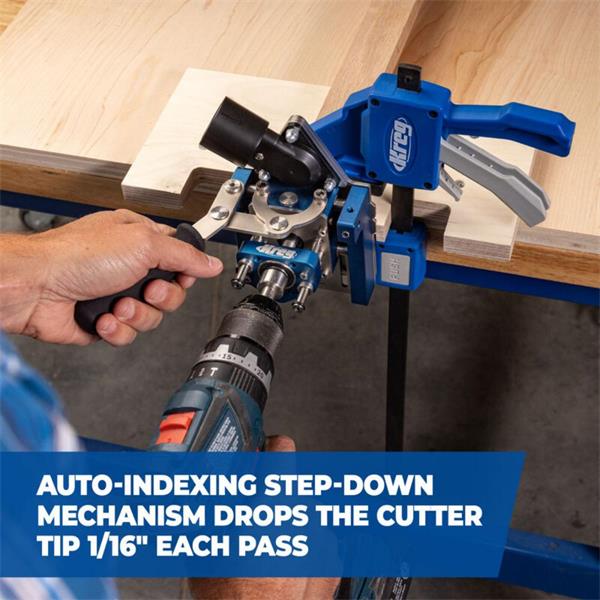

- Auto-indexing step-down mechanism lowers cutter in 1/16" increments
- Micro adjustment screws for customizable width of mortises

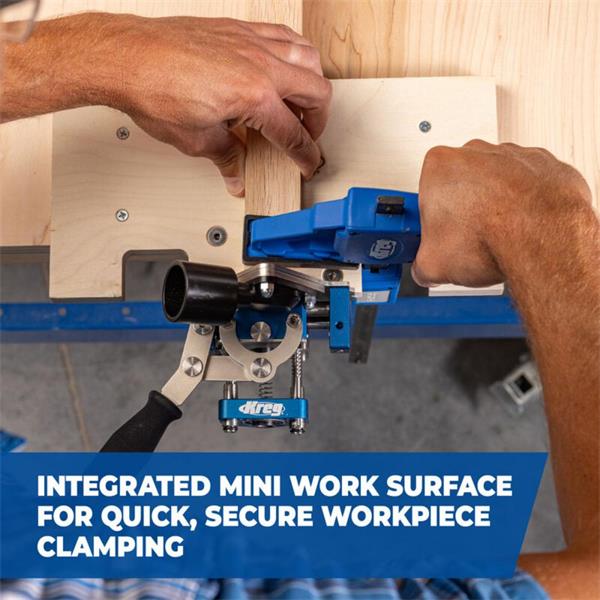

- Mini work surface makes setup simple
- Customizable depth and width of mortises
- Accurate and precise with laser-etched markings on bit and jig
- For workpieces 1/2" – 1 1/2" thick
- Quick setup for panel and 90-degree joints
- Includes carbide-tipped 6 mm MortiseMate Mortising Cutter (8 mm and 10 mm cutters also available)
Specifications:
- Workpiece thickness capacity: ½″ to 1½″ (≈ 12.7 mm to 38.1 mm).
- Maximum cutting depth:
• With 6 mm cutter: up to ¾″ (≈ 19 mm).
• With 8 mm or 10 mm cutters: up to 1″ (≈ 25 mm). - Construction: Machined anodized aluminum and stainless steel body; plywood mini work surface.
- Included accessories: 6 mm carbide-tipped mortising cutter with stop collar, dust collection adapter, hex wrenches (5⁄32″, 1⁄8″, 3⁄16″), and owner’s manual.
- Weight: Approximately 5.9 lb (2.7 kg).
- Warranty: 3-year limited warranty.
Capacity:
- Cutting depth at 1/16" increments, up to 3/4" with 6 mm cutter; 1" with 8 mm and 10 mm cutters
- Fits workpieces 1/2" to 1 1/2" thick
Compatibility:
- MortiseMate Mortising Cutters
- MortiseMate Loose Tenons
Includes:

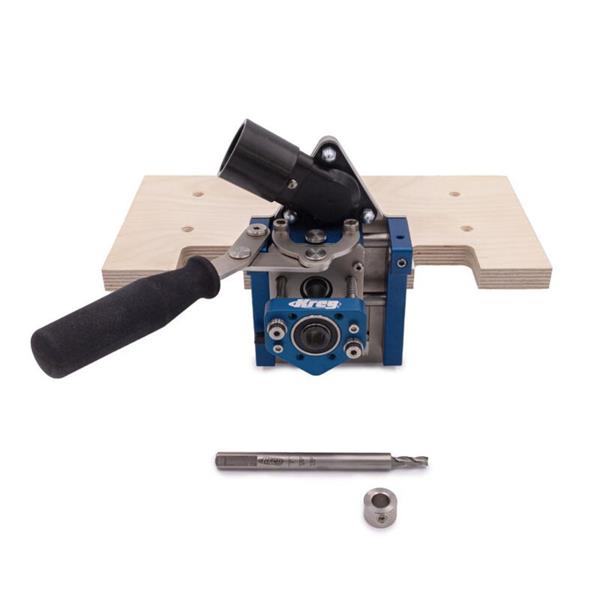

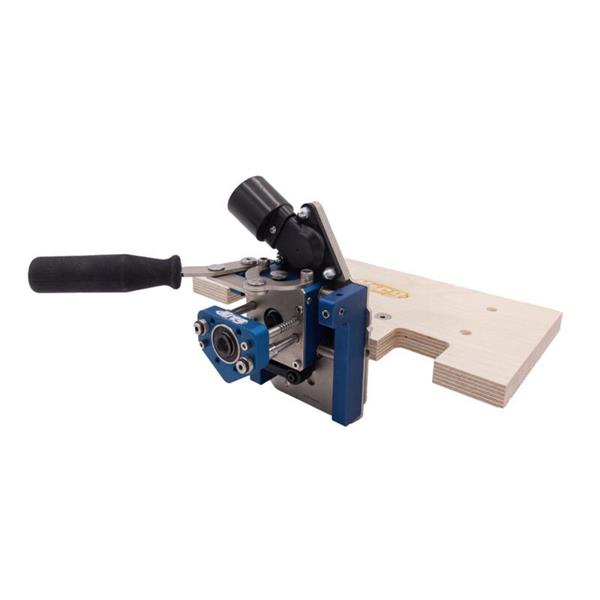

- MortiseMate™ Loose Tenon Jig
- Carbide-tipped MortiseMate 6 mm Mortising Cutter with Stop Collar
- Mini Work Surface

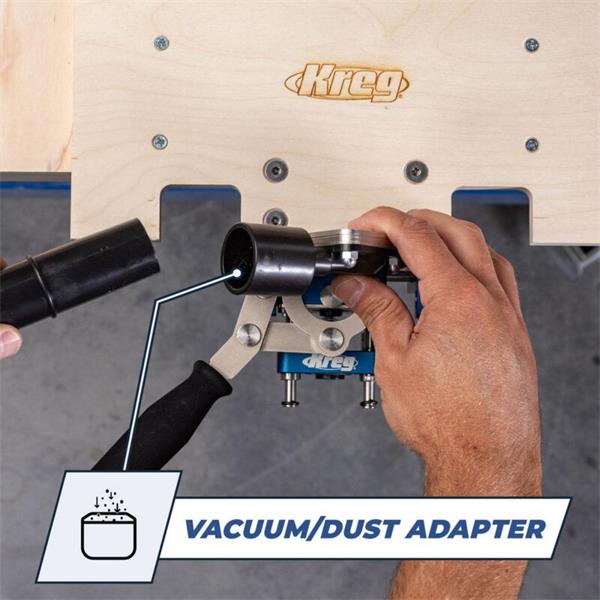

- Dust Collection Adapter (for 1 1/4" vacuum hoses)
- Hex Wrenches (5/32", 1/8", 3/16")
- Owner's Manual
