Milwaukee M12FHAC16-502X 12V 16mm FUEL SDS+ Hammer Drill (2x5Ah)
The Milwaukee M12FHAC16-502X is a compact, balanced 12V FUEL SDS+ hammer drill with a 16mm drilling capacity in concrete. It features a brushless POWERSTATE™ motor delivering 1.15 joules of impact energy and 0-1200 rpm no-load speed with a maximum impact rate of 4410 bpm. The tool supports 4 operational modes: rotary hammer, hammer only, rotation only, and a variolock position for the chisel, offering great versatility.
Features:
- Compact and well-balanced design for comfortable use and overhead work
- 1.15 J impact energy for efficient hammer drilling
- 4-mode operation: rotary hammer, hammer only, rotation only, and selectable chisel position (variolock)
- Anti-Vibration System (AVS) with additional anti-vibration side handle to reduce user fatigue
- Built on Milwaukee’s FUEL technology platform with POWERSTATE™ brushless motor, REDLITHIUM™ battery, and REDLINK PLUS™ electronics for power, durability, and runtime
- Three LED lights around chuck for shadow-free work area illumination
- Hanging hook for easy storage
- Compatible with all Milwaukee M12 batteries
- Supplied with 2 x 5.0Ah HIGH OUTPUT batteries and charger in HD case (kit version)
Specifications:
- Voltage: 12 V
- Impact Energy: 1.15 J (EPTA)
- Max drilling diameter in concrete: 16 mm
- Drilling capacity in concrete: 5 - 12 mm (optimized range)
- No-load speed: 0 - 1200 rpm
- Max blows per minute: 4410 bpm
- Weight with battery: approx. 2.3 kg
- Sound Power Level: 99 dB(A)
- Vibration level (chiseling): 10.3 m/s²
- Vibration level (drilling concrete): 12.3 m/s²
- Chuck type: SDS+
Applications:

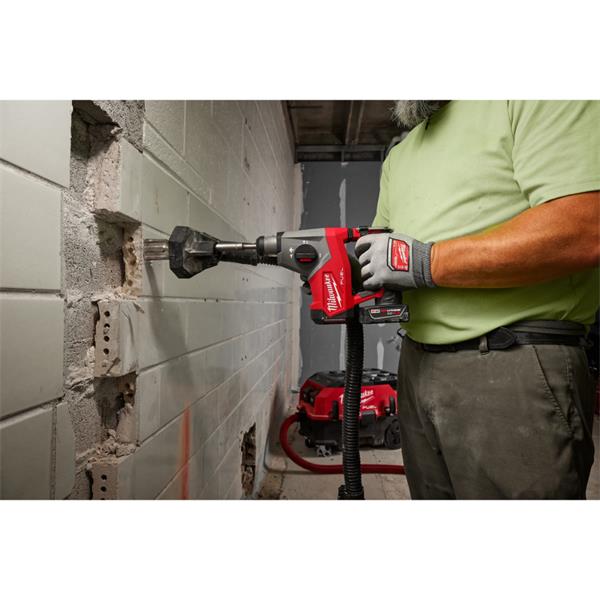

- Drilling and chiseling in concrete, masonry, and similar materials
- Suitable for light demolition, wall chipping, and fastening tasks on construction sites
- Precision rotary hammer drilling in tight spaces and overhead work

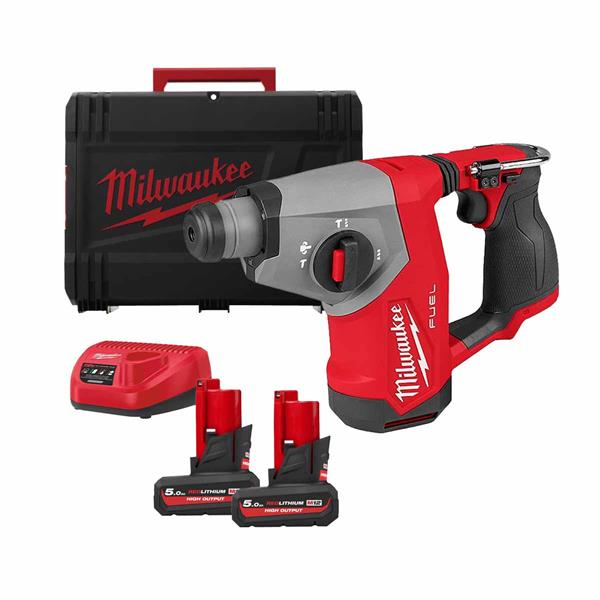

Includes:
- Milwaukee M12 FHAC16 12V FUEL SDS+ hammer drill
- 2 x 5.0Ah M12 REDLITHIUM HIGH OUTPUT batteries
- C12 C rapid charger
- HD carry case
