Neo Tools Hydraulic Crimper 01-543

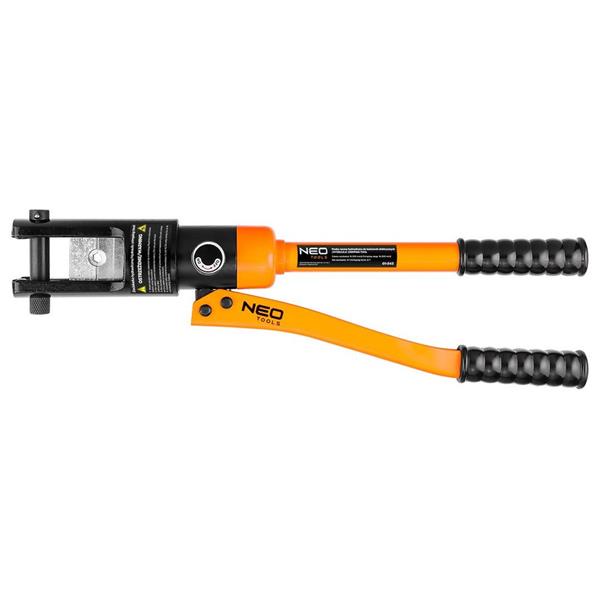

Hydraulic hand press for electrical terminals 16-300 mm 01-543 NEOis a hand press with a hydraulic cylinder, designed for effective crimping of terminals on electrical wires and steel cables. Due to the mechanism used, crimping does not require the involvement of too much force.
The tool has crimping jaw sizes in the range: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm². Its total length is 480 mm. The body is made of high-quality carbon steel.
The press has a type of hexogenic clamp, and the force generated is compared to 12 tons! The stroke occurs every 20 mm. The set includes a split clamping die, a rotating, extremely practical actuator head, a stop pin that locks the dies, a piston, the main valve of the actuator, ergonomic handles and a movable actuator arm. The press is additionally offered with a sturdy carrying case for easy storage and transportation of the tool. NEO brand meets the requirements of professionals and advanced do-it-yourselfers.
Features
- hydraulic hand press,
- For electrical terminals and wire rope,
- size of crimping jaws - 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²,
- type of clamp - hexogenic,
- clamping force - 12 tons,
- stroke - 20 mm,
- split clamping die,
- rotating actuator head,
- thrust pin locking dies,
- ergonomic handles,
- movable actuator arm,
- Total length of the tool - 480 mm.
Specifications
- EAN 5907558485523
- Total length of the product 480
- Net weight 3720
- Maximum clamping force 12
- Actuator stroke 20
Applications
- Crimping electrical cable lugs and terminals from 16 to 300 mm².
- Compressing wire rope sleeves and cable ferrules.
- Installation of power distribution, switchgear, and control panel wiring.
- Electrical contracting, industrial maintenance, and utility work.
- Suitable for heavy-duty cable termination where high crimping force is required.
- Ideal for professional electricians, installers, and maintenance technicians.

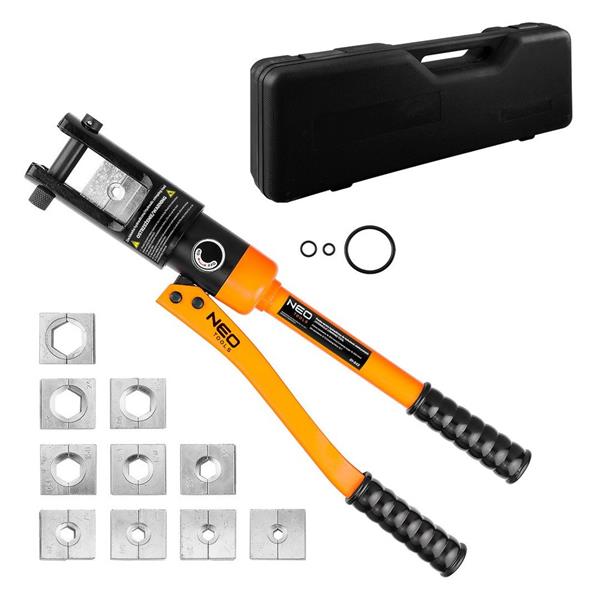

Comes With

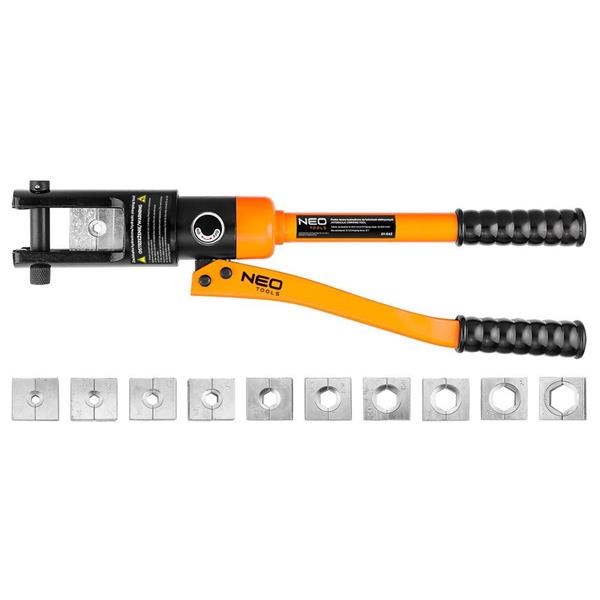

- NEO hydraulic hand press,
- interchangeable crimping dies,

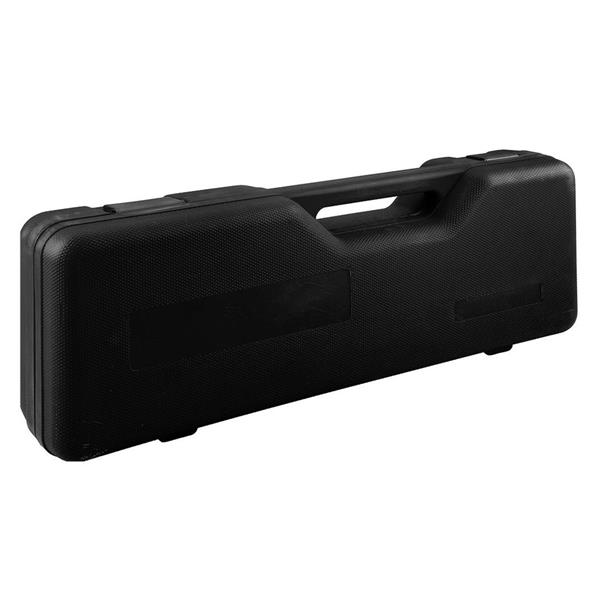

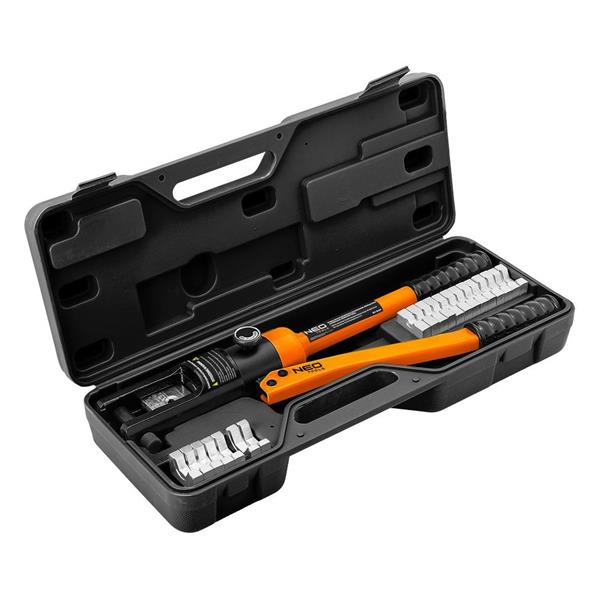

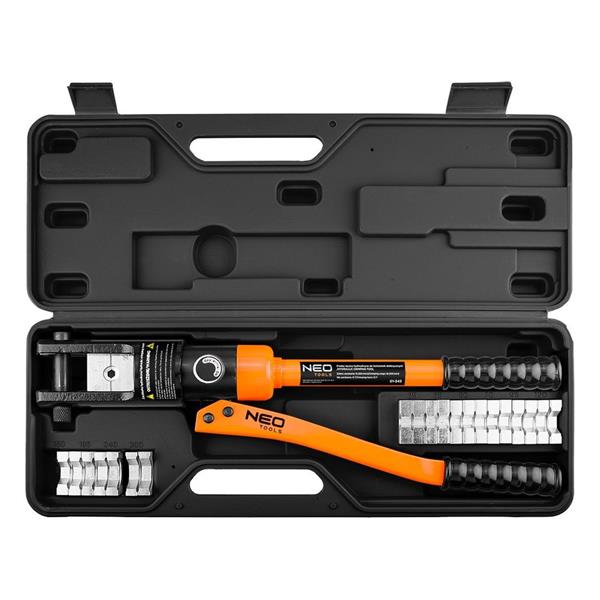

- carrying case.
