Runpotec 10172 RM35 incl. accessories and systemcase
The RM35 is a digital cable length measuring device which can be used to precisely measure cables, single conductors, ropes, pipes or hoses with a diameter of Ø 2 mm to Ø 32 mm. It is splashwater resitant- and dust resistant, extremely shock-resistant and thus ideally suited for the jobsite. The RM35 has 2 totalling buttons which can be used to add up the measured values as you work. A countdown function is also included, which can be used to measure predetermined cable lengths. The RM35 is equipped with a lithium-ion battery that has an extremely long runtime (100 hrs. continuous operation without backlighting). The battery can be charge using the integrated USB-C charging socket. The RM35 is perfectly stowed in the RUNPOTEC system case, which is also compatible with Sortimo cases. The RM35 can be easily connected to the XB 300, XB 500 or XB 500 T cable roller system via the supplied belt and clip system. The belt length can be adjusted from 750 mm to 1200 mm. Alternatively, this belt can also be fixed to the connecting pad, thereby offering a fixation option for all conventional rolling systems. Calibratable
Features
- Jobsite capable
- -Splash water & dust protected
- -Impact and breakage protected
- For versatile use with cables of Ø 2 mm - 32 mm, single conductors, ropes, pipes
- Compatible with all unwinding systems
- For measuring lengths with cable pulling systems
- Easy to use
- -Totalling function
Specifications
- Brand : Runpotec
- Dimensions: 450 mm x 420 mm x 170 mm
- Intended location: open (outdoor)
- Weight: 4,772 kg (Gross weight)
- Cable cross-section: from Ø 2 mm - 32 mm
- Max. display value: 99999,99 m / 99999,99 ft
- Min. display value: 0,01 m
- Max. speed: 1 m/s
- Measurable lenght: min. 5 m
- Mesuring accuracy: Measuring accuracy III - > 10 m ± 1 %
- Measuring wheel diameter: 25 mm
- Power source: Lithium Ion battery - continuous operation 100 hrs. (without lighting)
- Display: 1.5" LCD Display (with backlighting)
- Protection rating: IP 44
- Unit of measurement: Meter/Feet
- Temperature: -10°C to +40°C
- Air humidity: no condensation
- Mechanical: Class M2
- Electromagnetic: Class E1
Applications
- Cable length measurement
- Measuring cables, wires, ropes and pipes
- Length measurement during cable pulling
- Cable measurement on drums and unwinding systems
- Measuring predetermined cable lengths (countdown function)
- Measuring and tracking total cable usage
- On-site cable measurement for installation work
Comes With

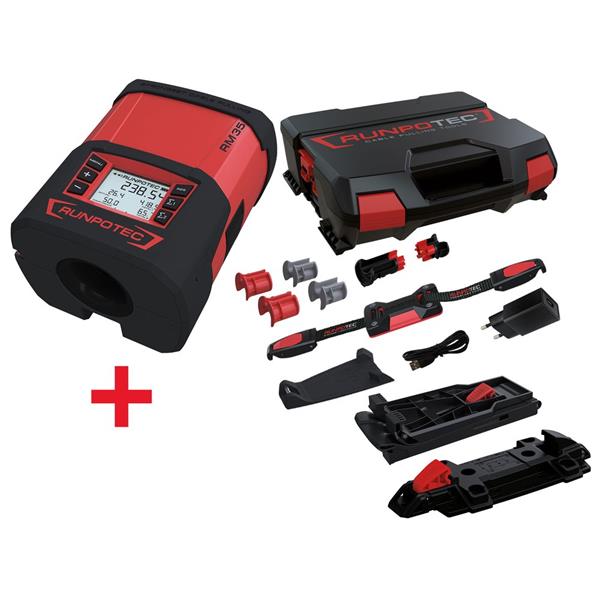

- 1 x RM35, 1 x belt with clip system 1200 mm, 1 x anchor pad, 1 x mounting plate system case, 2 x guide jaws grey (Ø 12 mm / 18 mm), 2 x guide jaws red (Ø 6 mm / 24 mm), 1 x USB-C charging cable, 1 x mains plug,
- 1 x RUNPOTEC system case
