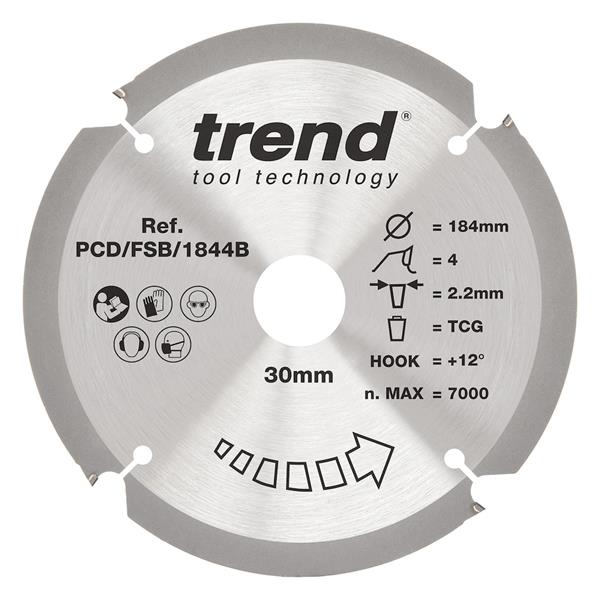

Trend Pcd Fibre Cement Circular Saw Blade 184mm X 30mm X 4t - Code PCD/FSB/1844B
A range of polycrystalline diamond blades for cutting a wide variety of ultra-hard and abrasive materials. For use in circular, plunge, table and mitre saws, Trend PCD Fibre Cement blades are exceptionally durable and retain their cutting edge for longer than TCT alternatives. Ideal for AQUAPANEL, HardieBacker, gypsum, composite decking & cladding, laminate flooring, fibre & glass reinforced polymer and compact laminate worktops.
Precision EDM-ground polycrystalline diamond (PCD) tips for optimum edge retention and cut quality in abrasive sheet materials.
Triple chip ground (TCG) tooth form with +12 hook for a clean, controlled, efficient cutting action through tough materials.
Precision ground alloy steel plate to maintain flatness.
Body hardened and tempered to minimise deflection under load.
Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
Etched blade information to EN847 safety standard.
Reamed Bore ensures precise spindle fit.

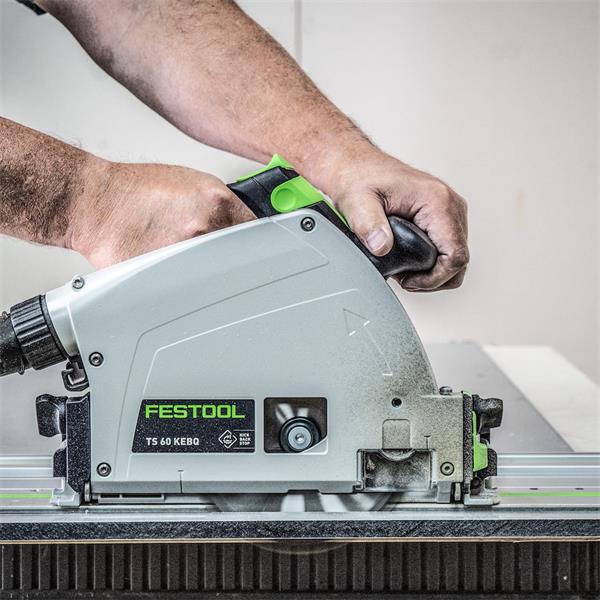

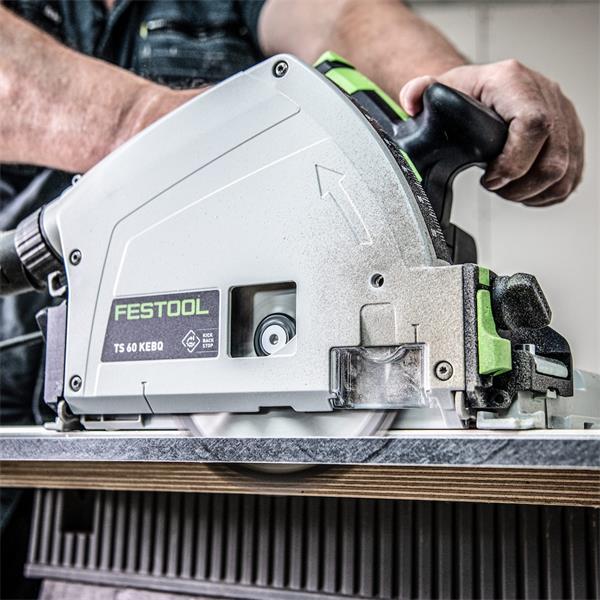

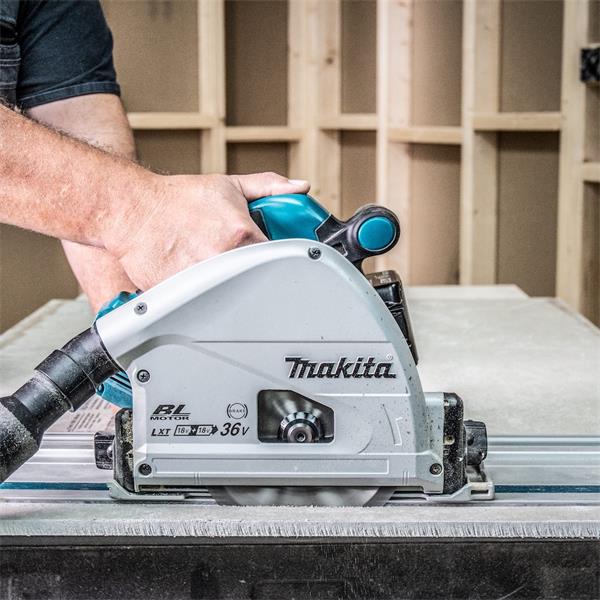

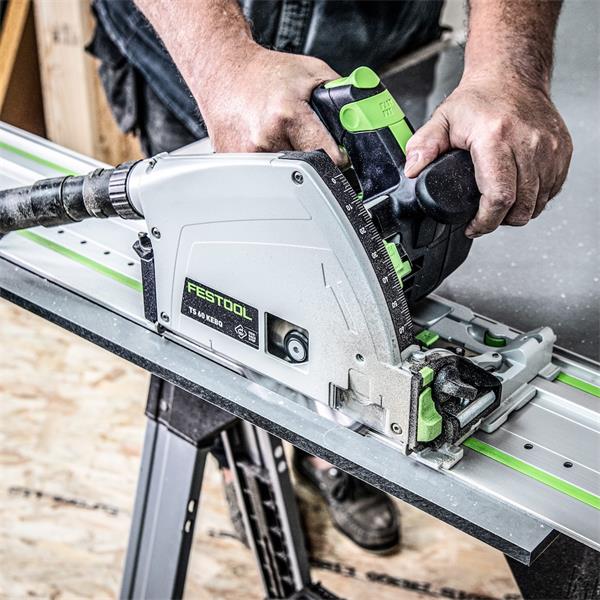

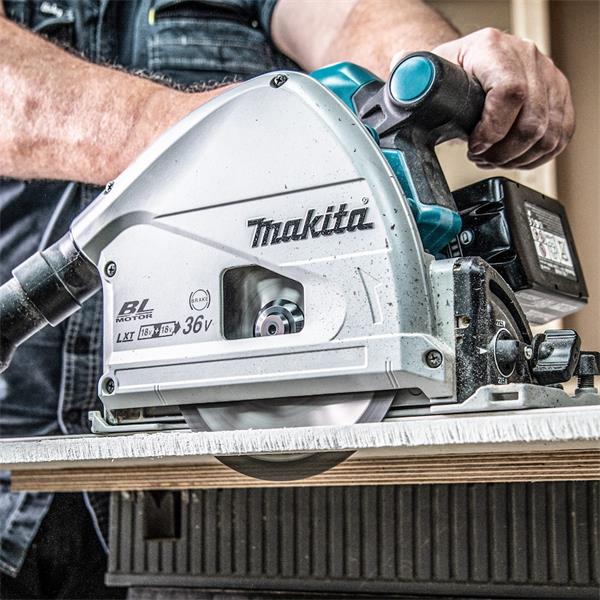

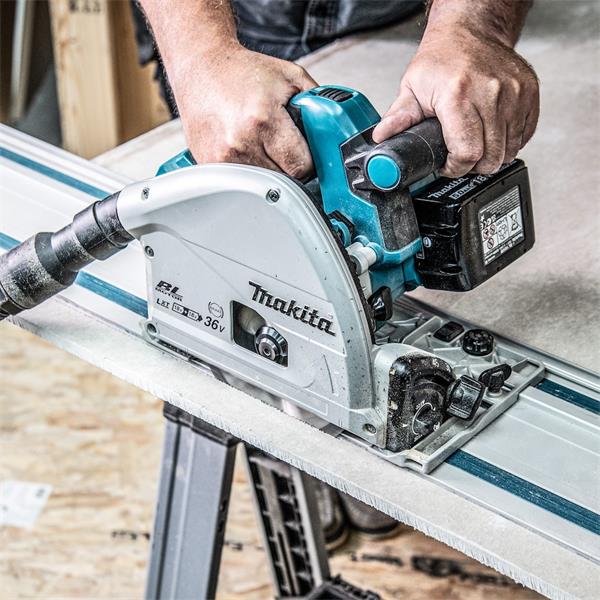

Compatible with Hikoki C3607DA, Makita DRS780, Makita RS001G
Specifications
- DIMENSIONS:
- D1=7 1/4 inches
- D1=184 mm
- Bore=30 mm
- Kerf=2.2 mm
- Plate thick=1.6 mm
- No. of Teeth=4
- Tooth Form=TCG
- Hook Angle=12 degrees
General Information
- Nett Weight (kg): 315
- Gross Weight (kg): 409
- Barcode SKU: 5027654092224
- Tooth Form: TCG
- Diameter (metric): 184
- Diameter (imperial): 7 1/4
- Sawbore (metric): 30
- Saw Kerf (metric): 2.2
- Saw Plate Thickness (metric): 1.6
- Hook Angle: 12
- Saw Teeth: 4
- Warranty Period: 12 months
- Intrastat Code: 8202310000
- Packaged Size: Dimensions not currently available
- Brand: Trend
- Identifier: PCD/FSB/1844B
