Bahco BH5SP500QA 500kg Transmission Jack

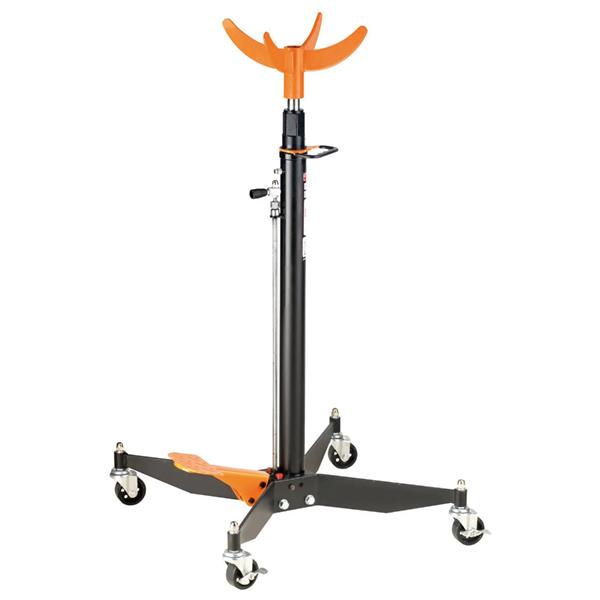

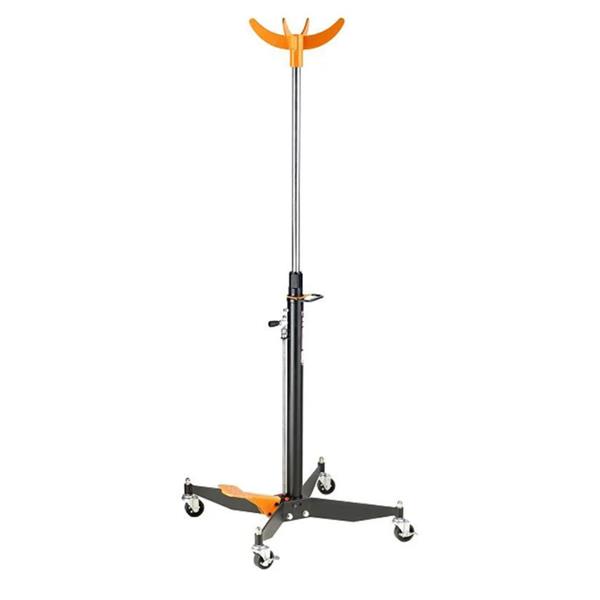

The Bahco BH5SP500QA is a professional-grade single-piston hydraulic transmission jack with a 500 kg lifting capacity. Designed for the removal, installation, and transportation of transmissions and other heavy vehicle components, it offers precision, safety, and ease of operation for workshop and pit use.
Features:
- Quick-approach system reaches maximum height in approximately 38 pump strokes

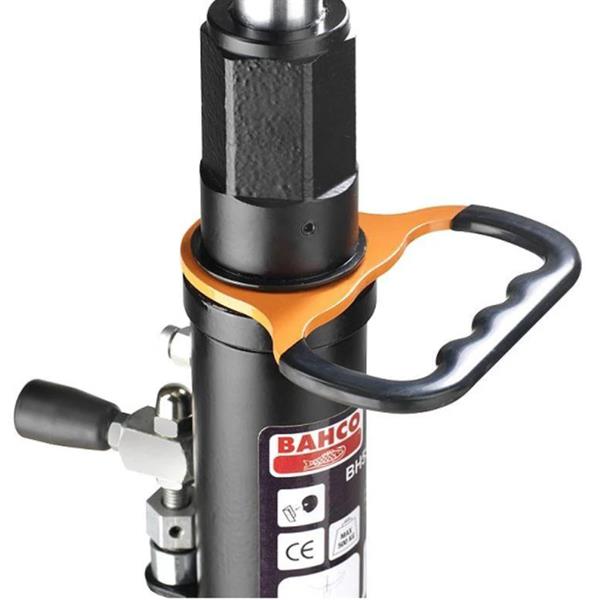

- Durable, hard chrome-plated pump piston and lifting rod for long service life
- Wide, stable base for maximum stability and safety during lifting operations

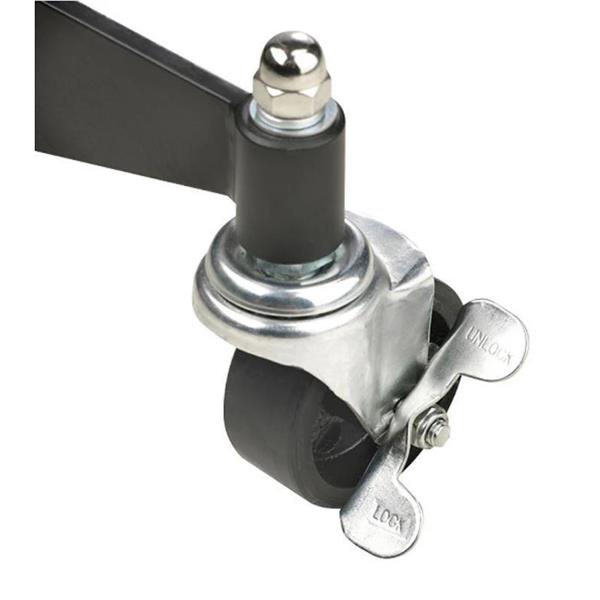

- Swivel castors (two with brakes) for easy maneuverability and secure positioning
- Large, ergonomically designed foot pedal allows operation from either side
- Saddle can be inverted for holding various components such as exhausts or fuel tanks
- Built-in overload valve prevents damage from excessive loads
Specifications:
- Lifting Capacity: 500 kg
- Minimum Height: 1,175 mm
- Maximum Height: 1,985 mm
- Pump Strokes to Max Height: 38
- Castor Diameter: 75 mm (2 with brakes)
- Compliance: CE Certified and BS EN 1494 Compliant
- Finish: Durable powder-coated steel frame
Applications:
- Removing and installing vehicle transmissions and gearboxes
- Supporting fuel tanks, exhaust systems, or suspension components
- Suitable for use in vehicle service pits and under hoists
- Ideal for professional automotive repair shops and maintenance facilities
- Safe lifting and alignment of heavy components during assembly or disassembly
Includes:
- 1 × Bahco BH5SP500QA Hydraulic Transmission Jack (500 kg)
- 4 × Swivel castors (2 with brakes)
- 1 × Foot pedal lift mechanism
- 1 × Adjustable saddle plate
- 1 × Operator’s manual
