Beta 8098 D8-3-Chain Sling EN818-4 4 Leg 3m

€424.99 Inc. VAT

New

Code BET-080980043

Add to Basket

Product Information

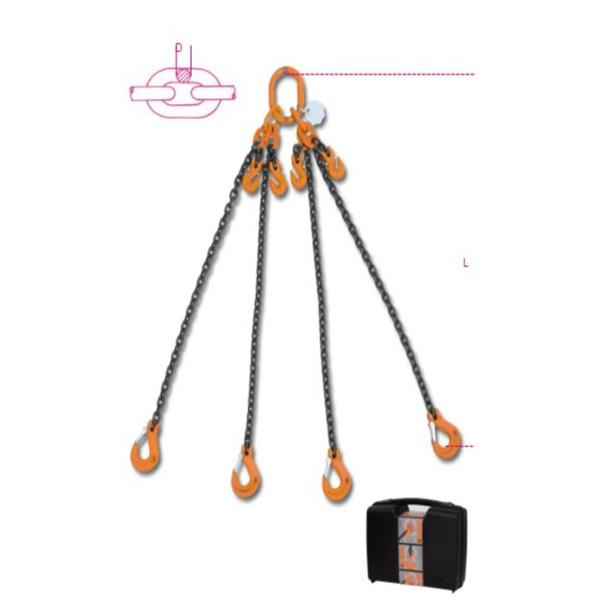

Beta 8098 D8-3-Chain Sling EN818-4 4 Leg 3m

lifting chain sling, 4 legs with clevis grab hooks, grade 8

Features

• The Beta 8098 D8-3 is a high-capacity, professional-grade 4-leg overhead lifting chain sling from Beta's specialized Robur rigging line. It is explicitly designed for overhead rigging, heavy crane lifting, and multi-point balanced material handling of highly substantial industrial payloads.
• This specific variant is rated to safely hoist a Working Load Limit (WLL) of up to 4.25 Tonnes (4,250 kg) when operated at standard rigging angles between 0° and 45°. The 4-leg configuration is essential for lifting loads with four distinct anchor points, providing maximum stabilization to prevent tipping, twisting, or load shifting during flight.

Specifications

• 8098: Designates the four-leg Grade 8 alloy steel chain sling configuration outfitted with specialized self-locking hooks and shortening components.
• D8: Indicates an 8 mm nominal chain link diameter, certifying it for heavy commercial tonnages where thinner chains are insufficient.
• 3: Defines the 3-metre total effective working length of each individual chain leg stretching from the master link down to the lower hook assemblies.
• EN818-4: Guarantees strict manufacturing compliance with European safety standards regulating welded multi-leg chain slings used for overhead crane operations.

Applications

• Four-Point Balanced Lifting: Perfect for hoisting broad or rectangular industrial objects like shipping containers, modular frame housings, heavy manufacturing machinery, and pre-cast concrete blocks that feature four corner lift points.
• Independent Leg Shortening: The defining feature of the 8098 setup is the inclusion of built-in clevis grab (shortening) hooks. If a load's center of gravity is off-center or asymmetrical, a rigger can shorten individual 3-metre chain legs link-by-link to keep the overall payload perfectly level and stable.
• Self-Locking Lower Safety Hooks: The bottom of each chain leg is fitted with a robust safety hook that snaps shut automatically and locks securely under the weight tension of the load. This eliminates any risk of accidental cable slippage or unhooking while suspended in mid-air.
• Extreme Thermal Resilience: Forged from high-tensile alloy steel with a 4:1 safety factor rating, it operates perfectly in punishing conditions without any alteration to its mechanical properties across a temperature spectrum of -40°C to +200°C.
• Traceable Metal Tag: Features a mandatory stamped metal identification tag detailing the specific WLL, serial numbers, and material grade so safety officers can effortlessly pass job site rigging audits.

Comes With

• High-Tensile Grade 8 Construction: Manufactured out of high-strength alloy steels, this sling is built specifically for intensive, continuous, and repeated heavy-duty use at maximum capacity without stretching or warping.
• Clevis Grab Hooks: The legs are fitted with heavy-duty grab hooks that securely clutch directly onto the chain links, making it easy to shorten a leg or create tight choke chains.
• Wide Temperature Resilience: Engineered to function flawlessly in extreme environments without any alteration to its mechanical traits, maintaining full performance across a temperature spectrum of -40°C to +200°C.
• Certified Safety Infrastructure: The kit adheres strictly to the UNI EN 818-4 standard and boasts a 4:1 safety factor. It comes equipped with a mandatory, durable chain-sling identification tag to display the Working Load Limit (WLL) for rigging safety checks.
