Beta 8097 D10-4-Chain Sling EN818-4 2Legs 4m

€375.99 Inc. VAT

New

Code BET-080970054

Add to Basket

Product Information

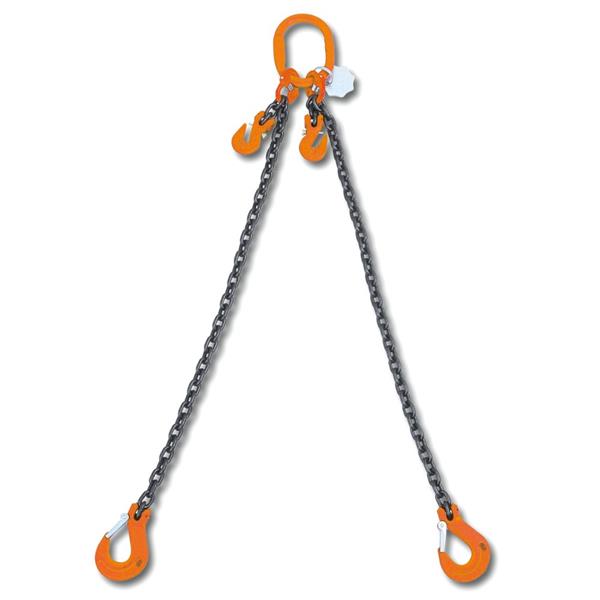

Beta 8097 D10-4-Chain Sling EN818-4 2Legs 4m

lifting chain sling, 2 legs with clevis grab hooks, grade 8

Features

• The Beta 8097 D10-4 is a high-capacity, professional-grade 2-leg overhead lifting chain sling from Beta's heavy-duty Robur rigging line. It is explicitly designed for extended-reach overhead rigging, heavy crane lifting, and balanced material handling of substantial industrial payloads.
• This specific configuration is rated to safely hoist a Working Load Limit (WLL) of up to 4.25 Tonnes (4,250 kg) when operated at a standard rigging angle between 0° and 45°. The 4-metre extended reach makes it ideal for handling extra-wide, deep, or bulky components that require ample clearance below the crane hook.

Specifications

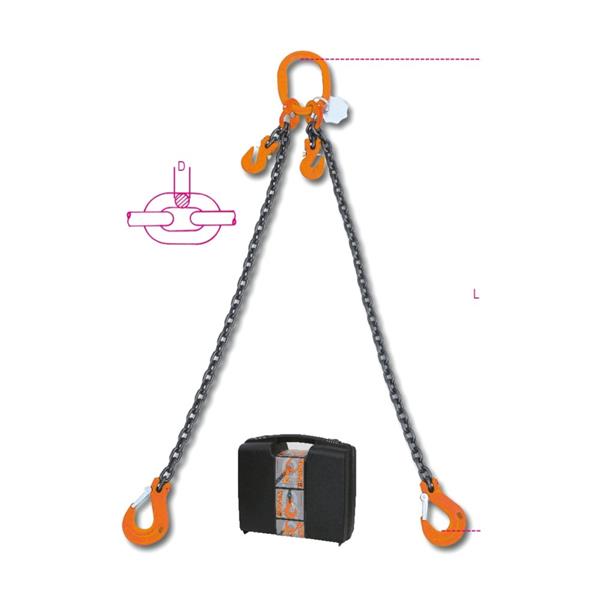

• 8097: Designates the dual-leg Grade 8 alloy steel chain sling configuration outfitted with integrated shortening components.
• D10: Indicates a thick 10 mm nominal chain link diameter, certifying it for heavy commercial tonnages where thinner 7mm or 8mm chains are inadequate.
• 4: Defines the extended 4-metre total effective working length of each individual chain leg, providing massive reach for tall, wide, or expansive payloads.
• EN818-4: Guarantees strict manufacturing compliance with European safety standards regulating welded multi-leg chain slings used for overhead crane operations

Applications

• Extended Asymmetrical Leveling: The defining feature of this sling is the inclusion of integrated clevis grab (shortening) hooks. Because each leg is 4 metres long, riggers have an expansive adjustment window to shorten either leg link-by-link. This allows for precise levelling of highly off-center or unevenly weighted components (like large industrial manufacturing equipment or offset structural steel frames).
• Self-Locking Lower Safety Hooks: The lower end of each leg features robust safety hooks that snap shut automatically and lock securely under the weight tension of the load. This heavy-duty mechanism completely eliminates the risk of accidental slips or unhooking while suspended in mid-air.
• ** Punishing Environment Resilience:** Assembled using high-tensile alloy steel with a 4:1 safety factor rating, it resists stretching, wear, and fatigue. It maintains full structural integrity across an intense temperature range of -40°C to +200°C.
• Traceable Metal Tag: Features a mandatory stamped metal identification tag detailing the specific WLL, serial numbers, and material grade so safety officers can effortlessly pass job site rig audits.

Comes With

• High-Tensile Grade 8 Construction: Manufactured out of high-strength alloy steels, this sling is built specifically for intensive, continuous, and repeated heavy-duty use at maximum capacity without stretching or warping.
• Clevis Grab Hooks: The legs are fitted with heavy-duty grab hooks that securely clutch directly onto the chain links, making it easy to shorten a leg or create tight choke chains.
• Wide Temperature Resilience: Engineered to function flawlessly in extreme environments without any alteration to its mechanical traits, maintaining full performance across a temperature spectrum of -40°C to +200°C.
• Certified Safety Infrastructure: The kit adheres strictly to the UNI EN 818-4 standard and boasts a 4:1 safety factor. It comes equipped with a mandatory, durable chain-sling identification tag to display the Working Load Limit (WLL) for rigging safety checks.
